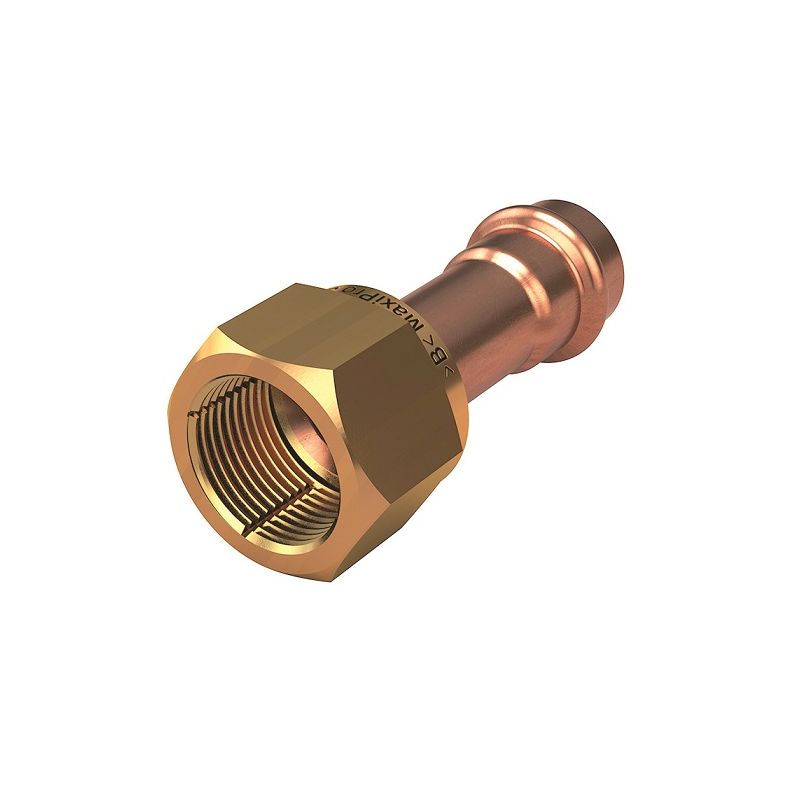

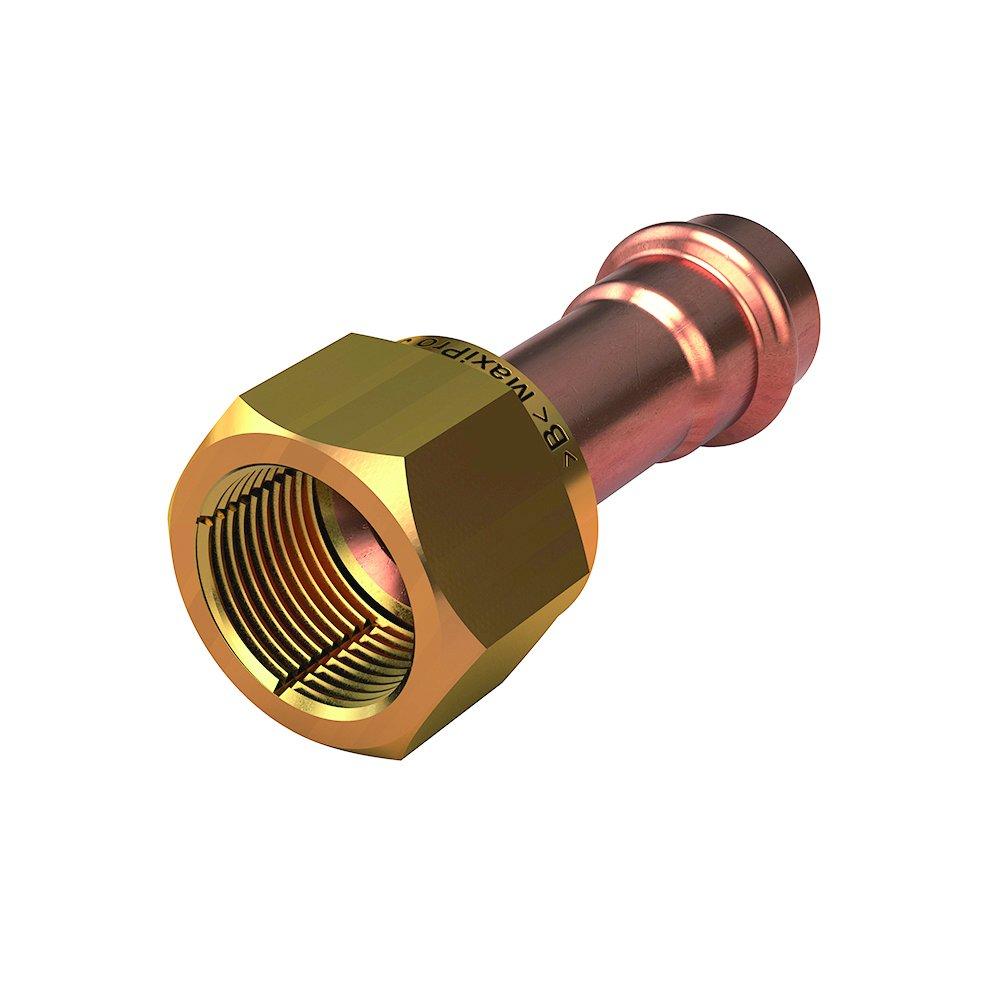

Conex MPA5285G0060601 MaxiPro SAE Copper Formed Flare with Brass Nut - Bag of 2

Product Description

The Conex MPA5285G0060601 MaxiPro 3/4 in. SAE Flare x Press Copper Adapter comes with a brass nut and O-ring and is designed for refrigeration, ventilation, and HVAC installations. This press fitting provides a secure, permanent, and leak-proof joint suitable for both refrigeration and air conditioning applications.

• Flame-free Installation avoids fire permit requirements
• No Nitrogen Purge requirement
• Three-point press provides high quality crimping

Product Highlights

The MaxiPro fitting provides a secure, permanent, and leak-proof joint suitable for refrigeration and air conditioning applications. UL listed and approved for field and factory installations.

Product Information

Standard Information

• Brand: CONEX
• Manufacturer Part Number: MPA5285G0060601
• Country of Origin: Europe

Technical Specifications

• SKU: MPA5285G0060601
• Brand/Manufacturer: Conex MaxiPro
• Material: Copper
• Filter Fitting: SAE Copper Flare - Brass Nut
• Type: ACR
• Max Operating Pressure: 700 PSI
• O-Ring/Seal Material: HNBR
• Operating Temperature Range: -40°F to 250°F
• Size: ¾″
• D1: 0.75″
• L: 3.21″
• L1: 0.86″
• S: 1.34″
• Z: 2.5″
• MPN: MPA5285G0060601
• ASME: ASME B31.5
• ASTM: ASTM G85, ASTM B280, ASTM B88
• CSA Certified: No
• Clean Bagged: Yes
• Collection: MaxiPro
• Diameter - Outside: 3/4 in
• End Connection 1: Press
• End Connection 2: Female Flare
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 3/4 in
• Fitting Size 2: 3/4 in
• Fitting Sizes: 3/4 in
• Fitting Type: Adapter
• IAPMO Listed: No
• Maximum Temperature: 250
• NSF Certified: No
• Origin: Global
• Package Quantity: Count of 2
• UL Listed: UL 109
• Pipe/Fitting/Nipple: Fittings
• Size/Diameter: 3/4 in
• Fitting/Connector Type: Adapter
• Nominal Size: 3/4 in
