Conex MPA5285G0050501 5/8 inches Maxipro sae copper formed flare with brass nut - bag of 2

Brand: CONEX
SKU: MPA5285G0050501
Availability: In Stock

Ships same day if ordered by 12 pm
$77.17
$77.17
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

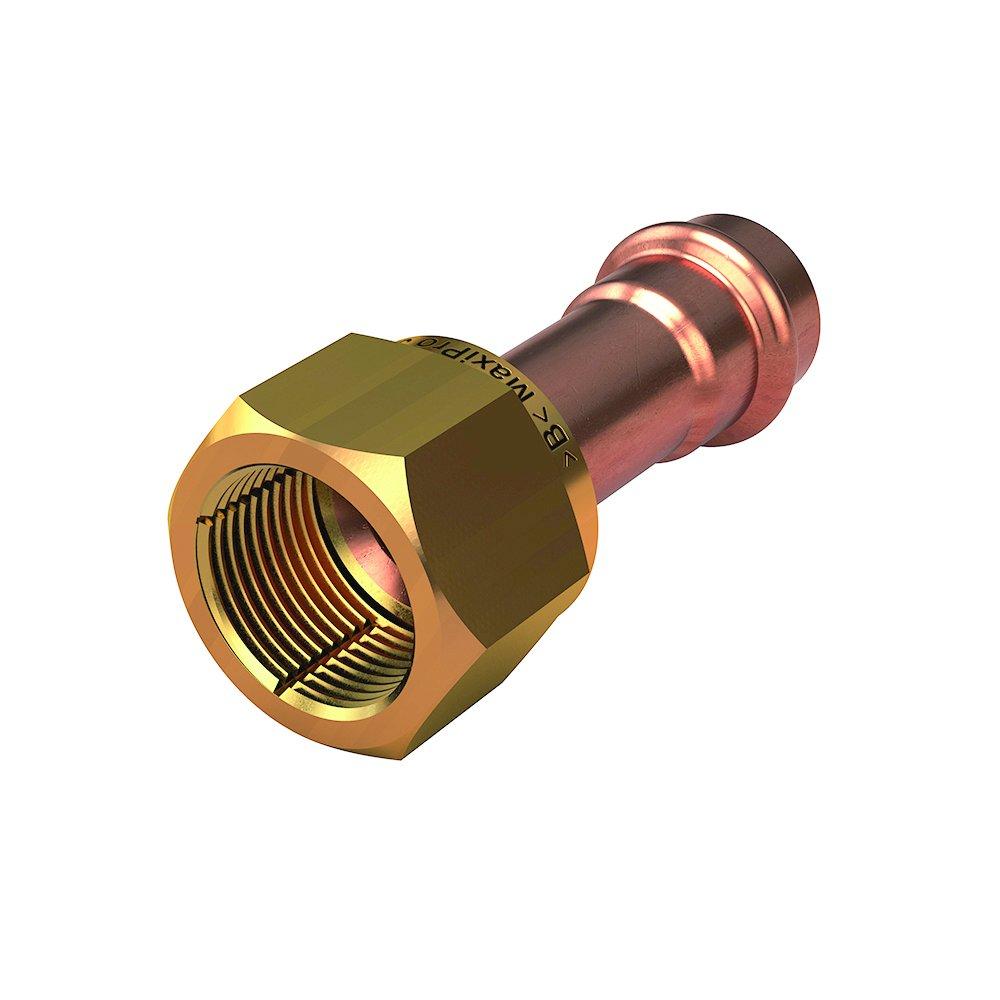

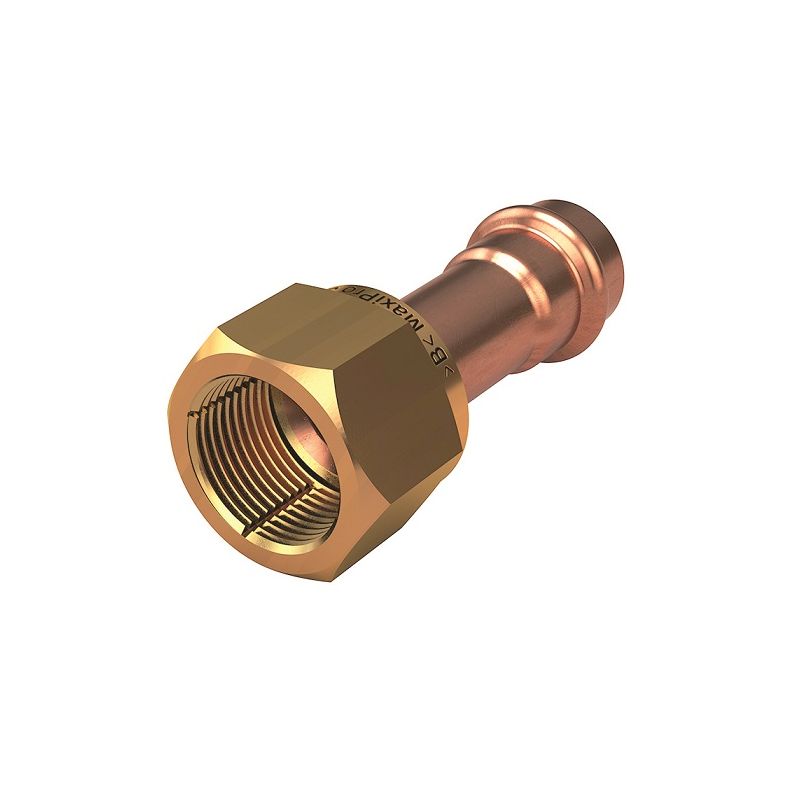

The CONEX MPA5285G0050501 MaxiPro 5/8 in. SAE Flare x Press Copper Adapter comes with a brass nut and O-ring and is designed for refrigeration, ventilation, and HVAC installations. These press fittings are field-proven with millions of successful installations worldwide. This adapter provides a secure, leak-free joint.

  • Flame-free installation, avoiding fire permit requirements.
  • No nitrogen purge requirement.
  • Three-point press provides high-quality crimping.

Product Highlights

This copper adapter features a protected HNBR O-ring and offers higher productivity and improved flexibility for HVAC and refrigeration applications.

Product Information

Standard Information

  • Brand: CONEX
  • Manufacturer Part Number: MPA5285G0050501
  • Country of Origin: Global
Technical Specifications
SKU
MPA5285G0050501
Brand/Manufacturer
Conex MaxiPro
Material
Copper
Size
5/8"
Application
ACR
Bag Quantity
2
Operating Temperature Range
-40℉ to 250℉
Maximum Operating Pressure (Bar)
48 Bar
Maximum Operating Pressure (kPa)
4800 kPa
Maximum Operating Pressure (PSI)
700 PSI
Fitting Material
Wrot Copper
O-Ring/Seal Material
HNBR
Dimensions (mm) L
74
Dimensions (mm) L1
21
Dimensions (mm) Z
58
Dimensions (mm) D1
0.625
Dimensions (mm) D2
0.625
Dimensions (mm) S
27
ASME
ASME B31.5
ASTM
ASTM G85, ASTM B280, ASTM B88
CSA Certified
No
Clean Bagged
Yes
Collection
MaxiPro
Diameter - Outside
5/8 in
End Connection 1
Press
End Connection 2
Female Flare
End Connections
Press x Female Flare
FM Approved
No
Fitting Size 1
5/8 in
Fitting Size 2
5/8 in
Fitting Sizes
5/8 in
Fitting Type
Adapter
IAPMO Listed
No
Length
74 mm
Maximum Temperature
250
NSF Certified
No
Origin
Global
Package Quantity
Count of 2
Pressure - Maximum
2100 psi
Pressure Class
700#
UL Listed
UL 109
Pipe/Fitting/Nipple
Fittings
Nominal Size
5/8 in
