Conex MPA5285G0020201 MaxiPro SAE Copper Formed Flare with Brass Nut - Bag of 4

Product Description

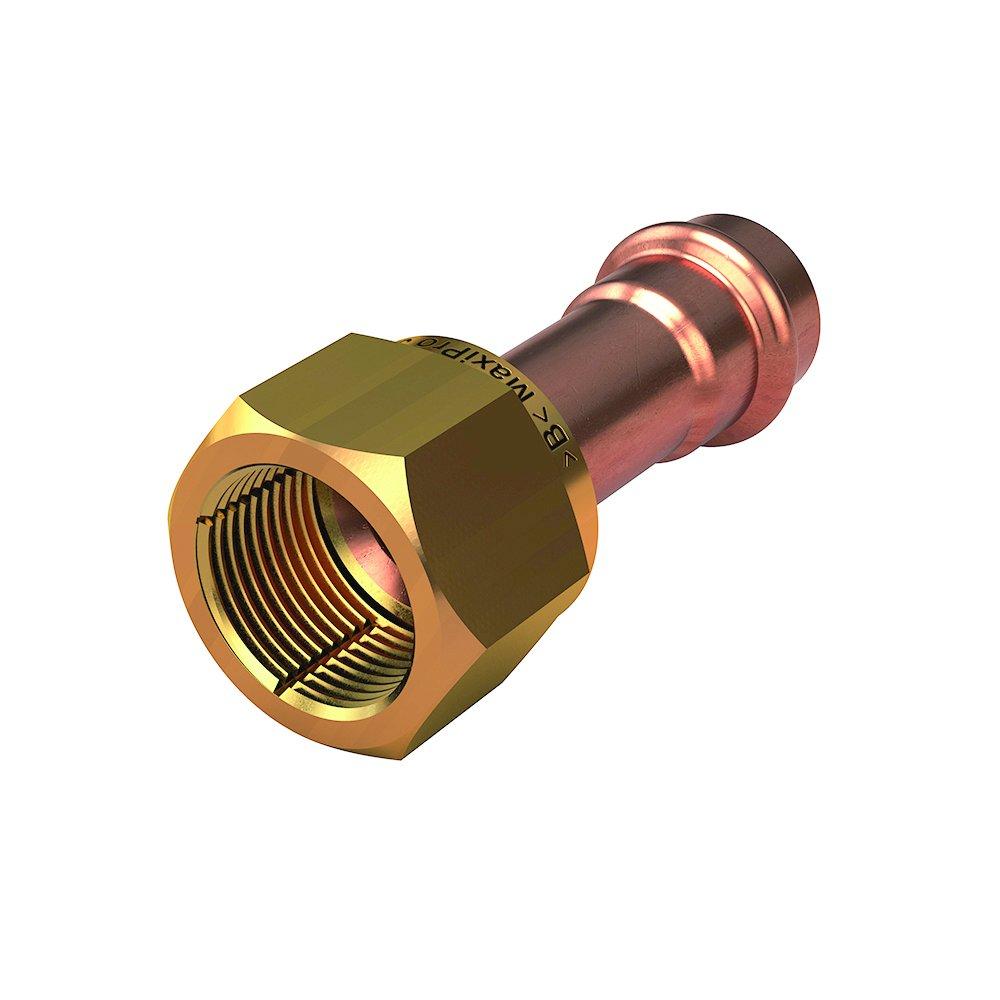

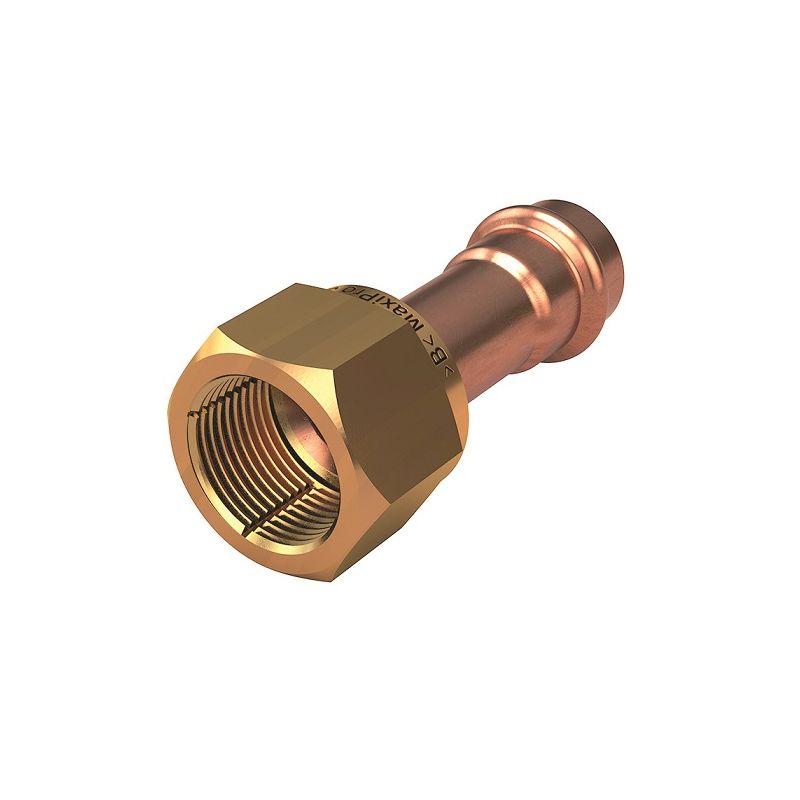

The CONEX MPA5285G0020201 MaxiPro SAE Flare x Press Copper Adapter comes with a brass nut and O-ring, and is supplied as a bag of 4. Designed for refrigeration, ventilation, and HVAC installations, this fitting provides a secure, permanent, and leak-proof joint. It features flame-free installation, avoiding the need for hot work permits.

• Flame-free installation avoids fire permit requirements.
• No nitrogen purge requirement.
• Three-point press provides high-quality crimping.

Product Highlights

The MaxiPro fitting ensures secure, leak-free joints in refrigeration and air conditioning applications, offering ease of installation and long-term reliability.

Product Information

Standard Information

• Brand: CONEX
• Manufacturer Part Number: MPA5285G0020201
• Country of Origin: Global

Technical Specifications

• SKU: MPA5285G0020201
• Brand/Manufacturer: Conex MaxiPro
• Material: Copper
• Filter Fitting: SAE Copper Flare - Brass Nut
• Type: ACR
• Fitting Material: Copper
• Max Operating Pressure: 700 PSI
• O-Ring/Seal Material: HNBR
• Operating Temperature Range: -40°F to 250°F
• Size: 1/4″
• D1: 0.25″
• L: 2.13″
• L1: 0.71″
• S: 0.67″
• Z: 1.81″
• ASME: ASME B31.5
• ASTM: ASTM G85, ASTM B280, ASTM B88
• CSA Certified: No
• Clean Bagged: Yes
• Collection: MaxiPro
• Diameter - Outside: 1/4 in
• End Connection 1: Press
• End Connection 2: Female Flare
• End Connections: Press x Female Flare
• FM Approved: No
• Fitting Size 1: 1/4 in
• Fitting Size 2: 1/4 in
• Fitting Sizes: 1/4 in
• Fitting Type: Adapter
• IAPMO Listed: No
• Wrot Copper: Wrot Copper
• Maximum Temperature: 250
• NSF Certified: No
• Origin: Global
• Package Quantity: Count of 4
• Pressure - Maximum: 2100 psi
• Pressure Class: 700#
• UL Listed: UL 109
• UPC: 656565803299
• Mid-City Product ID: 417510
• Manufacturer: Conex Bänninger
• Manufacturer Part Number: MPA5285G0020201
• Application: For air conditioning and refrigeration
• Brand: MaxiPro
• Connection Type: Flare x Press
• Material Standard: ASTM B280/G85
• Model: MPA5285G
• Nominal Size: 1/4 in
• Pressure Rating: 700 psi
• Standards/Approvals: EN 12735-1/12735-2 Approved|UL 109/1963 Listed
• Temperature Rating: -40 to 250 deg F
• UNSPSC: 40183109
