Conex MPA5243 0060501 MaxiPro Fitting Reducer 3/4 inches x 5/8 inches

Product Description

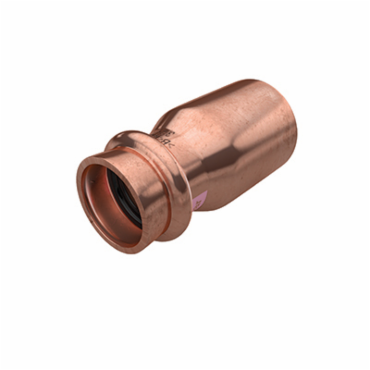

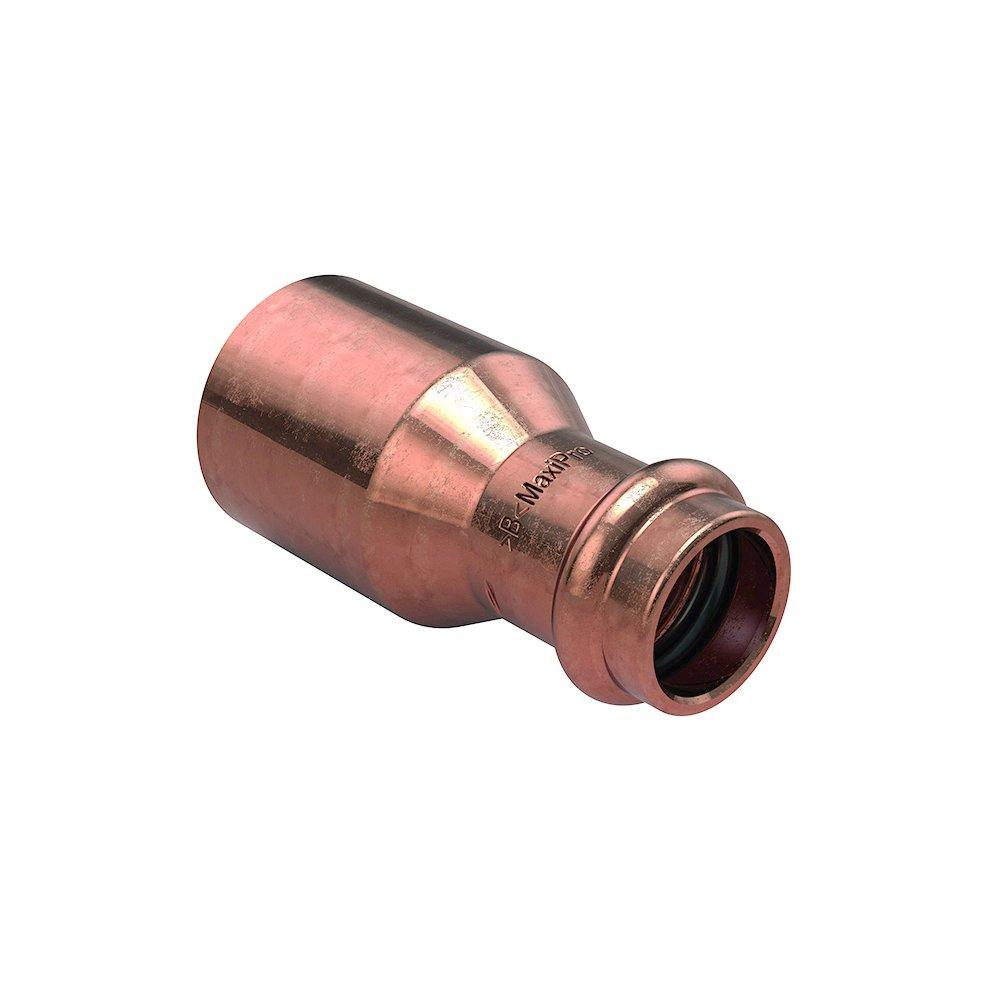

The CONEX MPA5243 0060501 >B< MaxiPro fitting reducer provides a secure, permanent, and leak-proof joint suitable for refrigeration and air conditioning applications. These press fittings are field-proven with millions of successful installations worldwide. The fitting reducer is made of copper with HNBR O-ring/seal material. It is designed for ACR applications.

• Flame-free Installation avoids fire permit requirements
• No Nitrogen Purge requirement
• Three-point press provides high quality crimping

Product Highlights

The MaxiPro fitting reducer offers secure, leak-free joints with flame-free installation and no nitrogen purge requirement.

Product Information

Standard Information

• Brand: CONEX
• Manufacturer Part Number: MPA5243 0060501
• Country of Origin: Global

Technical Specifications

• Product Code: MPA5243 0060501
• Filter Fitting: Fitting Reducer
• Type: ACR
• Fitting Material: Copper
• Max Operating Pressure: 700 PSI
• O-Ring/Seal Material: HNBR
• Operating Temperature Range: -40°F to 250°F
• Size: 3/4" x 5/8"
• D1: 0.75"
• L: 2.11"
• L1: 0.98"
• Z: 1.12"
• ASME: ASME B31.5
• ASTM: ASTM G85, ASTM B280, ASTM B88
• CSA Certified: No
• Clean Bagged: Yes
• Collection: MaxiPro
• End Connection 1: Male Sweat
• End Connection 2: Press
• End Connections: Male Sweat x Press
• FM Approved: No
• Fitting Size 1: 3/4 in
• Fitting Size 2: 5/8 in
• Fitting Sizes: 3/4 in x 5/8 in
• Fitting Type: Reducer
• IAPMO Listed: No
• Material: Wrot Copper
• Maximum Temperature: 250
• NSF Certified: No
• Origin: Global
• UL Listed: UL 109
• Application: ACR
• Bag Quantity: 2
• Maximum Operating Pressure (Bar): 48 Bar
• Maximum Operating Pressure (kPa): 4800 kPa
• Pipe/Fitting/Nipple: Fittings
• Size/Diameter: 3/4 in
• Fitting/Connector Type: Reducing Fitting
• Nominal Size: 3/4 x 5/8 in
