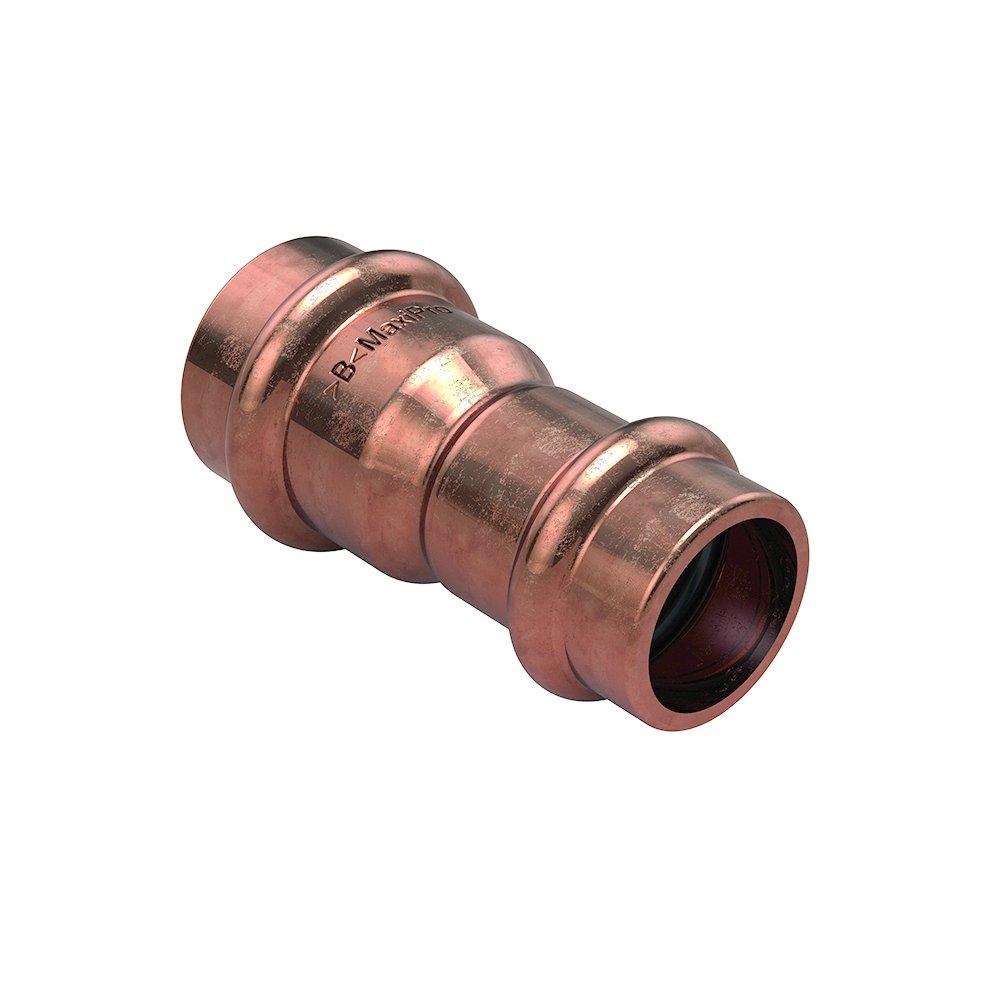

Conex MPA5240 0090701 MaxiPro Copper Reducing Coupler 1-1/8 x 7/8 in

Product Description

The CONEX MPA5240 0090701 MaxiPro Copper Reducing Coupler is designed for refrigeration, ventilation, and HVAC installations. This press fitting provides a secure, permanent, leak-proof joint suitable for both refrigeration and air conditioning applications. It is UL listed and approved for field and factory installations.

• Flame-free Installation avoids fire permit requirements.
• No Nitrogen Purge requirement.
• Provides a secure leak-free joint.

Product Highlights

The CONEX MaxiPro Copper Reducing Coupler ensures high-quality crimping and improved flexibility for ACR applications up to 700 PSI.

Product Information

Standard Information

• Brand: CONEX
• Manufacturer Part Number: MPA5240 0090701
• Country of Origin: Global

Technical Specifications

• SKU: MPA52400090701
• Material: Copper
• Product Code: MPA5240 0090701
• Filter Fitting: Reducing Coupler
• Type: Connector
• Fitting Material: Copper
• Max Operating Pressure: 700 PSI
• O-Ring/Seal Material: HNBR
• Operating Temperature Range: -40 0F to 250 0F
• Size: 1-1/8" x 7/8"
• D1: 1.13"
• L: 2.28"
• Z: 0.33"
• Pipe/Fitting/Nipple: Fittings
• Size/Diameter: 1-1/8 in
• Fitting/Connector Type: Reducing Coupling
• Nominal Size: 1-1/8 x 7/8 in
• ASME: ASME B31.5
• ASTM: ASTM G-85, ASTM B-280, ASTM B-88
• BAA Compliant: Yes
• CSA Certified: No
• Clean Bagged: Yes
• Collection: MaxiPro
• Diameter - Outside: 1-1/8 in, 7/8 in
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 1-1/8
• Fitting Size 2: 7/8
• Fitting Sizes: 1-1/8 in x 7/8 in
• Fitting Type: Coupling
• IAPMO Listed: No
• Length: 2.2835
• Maximum Temperature: 250
• NSF Certified: false
• Origin: Global
• Package Quantity: Count of 1
• Pressure - Maximum: 2100 psi
• Pressure Class: 700#
• UL Listed: UL 109
• Weight: 0.2006
• Composition: Copper
• GTIN: 30656565801821
• Prop 65: true
• UPC: 656565801820
• Height: 1.4961
• Country of Origin: Varies
