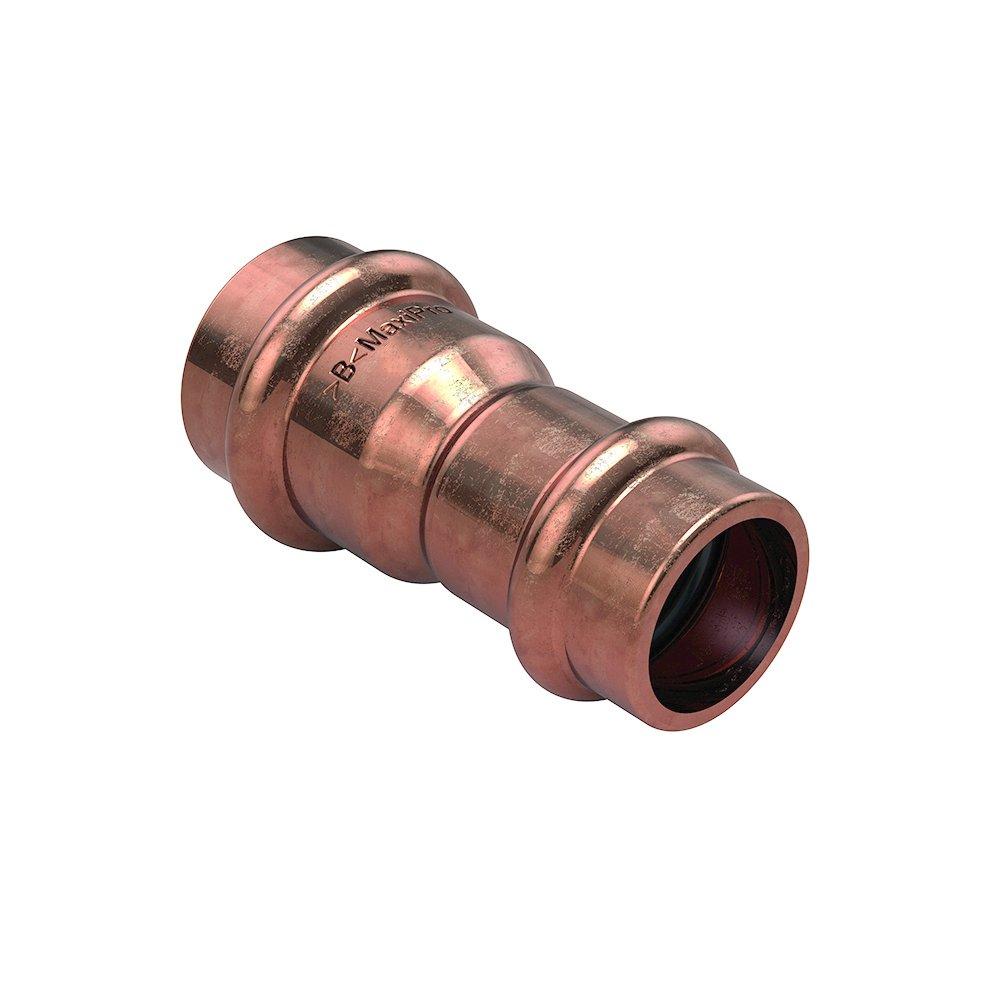

Conex MPA5240-0060501 Coupling Fitting 3/4 x 5/8 in. OD Pack of 2

Product Description

The CONEX MPA5240-0060501 coupling fitting is a 3/4" x 5/8" reducing coupler. This MaxiPro fitting allows for flame-free installation, avoiding fire permit requirements and the need for nitrogen purge. It features a three-point press design for high-quality crimping and a protected HNBR O-Ring for a secure, leak-free joint. Pack of 2.

• Flame-free Installation avoids fire permit requirements
• No Nitrogen Purge requirement
• Three-point press provides high quality crimping

Product Highlights

The CONEX MPA5240-0060501 coupling fitting ensures secure, leak-free connections with its innovative press design and protected O-ring.

Product Information

Standard Information

• Brand: CONEX
• Manufacturer Part Number: MPA5240 0060501
• Country of Origin: Global

Technical Specifications

• Diameter - Outside: 3/4 in, 5/8 in
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• Fitting Size 1: 3/4 in
• Fitting Size 2: 5/8 in
• Fitting Sizes: 3/4 in x 5/8 in
• Fitting Type: Coupling
• Material: Wrot Copper
• Package Quantity: Count of 2
• Maximum Temperature: 250
• Pressure - Maximum: 2100 psi
• UL Listed: UL 109
• ASME: ASME B31.5
• ASTM: ASTM G-85, ASTM B-280, ASTM B-88
• CSA Certified: No
• Clean Bagged: Yes
• Collection: MaxiPro
• FM Approved: No
• IAPMO Listed: No
• NSF Certified: No
• Origin: Global
