Conex MPA5041 0070001 universal limited MaxiPro 7/8 in. OD ACR copper press 45° elbow (Bag of 3)

Product Description

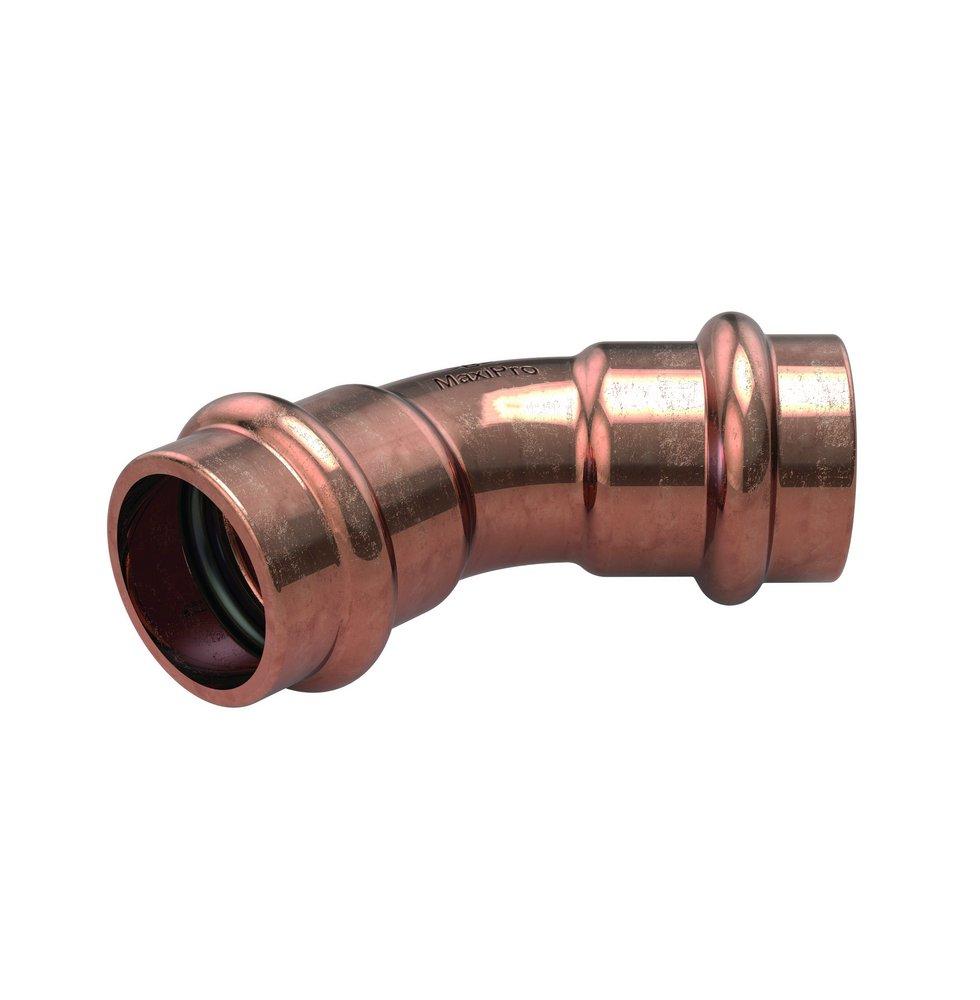

The Conex MPA5041 0070001 press fittings are field proven with millions of successful installations worldwide. This 7/8" 45 degree elbow is made of wrot copper and features a high-quality, protected HNBR O-Ring that provides a secure leak-free joint. It is UL listed and approved for field and factory installations.

• Flame-free Installation. Avoids fire permit requirement
• No Nitrogen Purge requirement
• Three-point press. Provides high quality crimping

Product Highlights

Provides high-quality crimping and secure, leak-free joints. Easy access to work sites, no gas bottles required.

Product Information

Standard Information

• Brand: CONEX
• Manufacturer Part Number: MPA5041 0070001
• Country of Origin: Global

Technical Specifications

• ASME: ASME B31.5
• ASTM: ASTM G-85, ASTM B-280, ASTM B-88
• BAA Compliant: Yes
• Clean Bagged: Yes
• Collection: MaxiPro
• Elbow Degree: 45
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 7/8
• Fitting Size 2: 7/8
• Fitting Sizes: 7/8 in
• Fitting Type: Elbow
• IAPMO Listed: No
• Material: Wrot Copper
• Maximum Temperature: 250
• NSF Certified: No
• Origin: Global
• Package Quantity: Count of 3
• Pressure - Maximum: 2100 psi
• Type: Connector
• UL Listed: UL 109
• Angle: 45 deg
• Application: For air conditioning, refrigeration and heat pump (refrigerant side) applications
• Brand: MaxiPro
• Connection Type: Press
• Fitting Size: 7/8 in
• Pressure Rating: 700 psig
• Standards/Approvals: ASTM G85 Specified|EN 378-2/14276-2 Approved|UL 109/1963 Listed
• Temperature Rating: -40 to 250 deg F
• UNSPSC: 40183101
• A2L Ready: Yes
