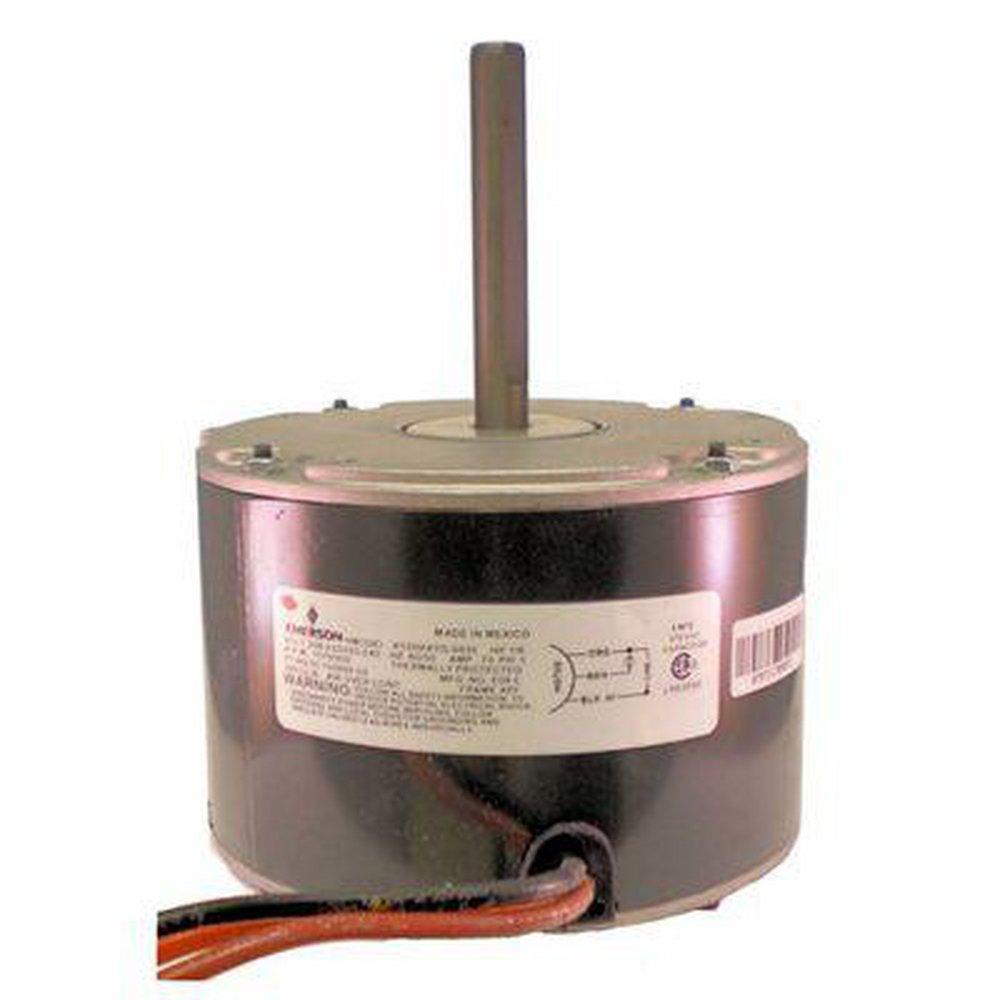

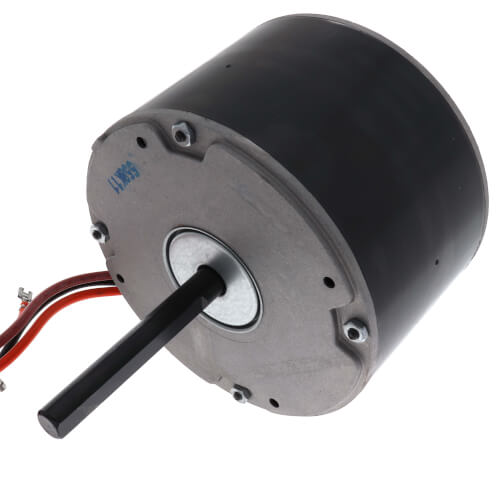

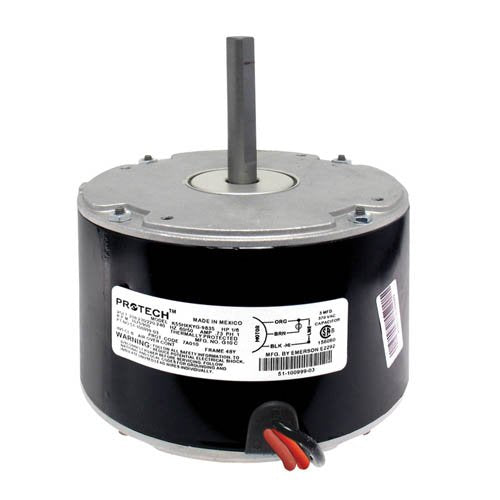

Rheem 5110099903 Protech 1/6 HP 1075 RPM 208/220/230V Single Phase Condenser Motor

Product Description

The Rheem 5110099903 Protech condenser motor is a 1/6 horsepower motor designed to meet the requirements of HVAC and refrigeration systems. This single-phase motor operates at 1075 RPM and is compatible with 208, 220, and 230-volt power sources.

• OEM replacement for Rheem, Ruud, and WeatherKing models
• Single-phase operation
• 1/6 horsepower, 1075 RPM

Product Highlights

This motor is specifically designed for use in air conditioning and refrigeration applications. It is CSA certified and comes with a 1-year warranty, ensuring reliability and efficiency.

Product Information

Standard Information

• Brand: Rheem
• MPN: 5110099903

Technical Specifications

• Horsepower: 1/6 HP
• RPM: 1075 RPM
• Voltage: 208-230V
• Phase: Single-Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 3-7/16 inches
• Overall Length: 7-1/4 inches
• Amperage Rating: 0.73A
• Rotation: Counterclockwise
• Mounting Type: End-Boss, Shell-Band
