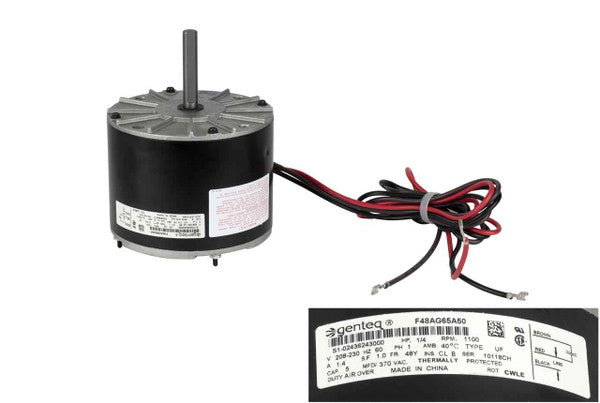

York S1-024-36243-000 1/4hp 230v 1075rpm CW CND MTR

Product Description

The York S1-02436243000 is a one-speed direct drive condenser fan motor designed for reliable operation in HVAC systems. This motor operates at 208/230 VAC with an amperage rating of 1.4 A. It features a compact design making it suitable for a variety of HVAC applications.

• 1-Speed Direct Drive operation
• Voltage rating: 208/230 VAC
• Built for condenser fan systems

Product Highlights

This condenser fan motor is essential for optimal airflow in cooling systems. It is engineered to provide consistent performance and reliability.

Product Information

Standard Information

• Brand: York
• MPN: S1-02436243000

Technical Specifications

• Amperage Rating: 1.4 A
• Bearing Type: Sleeve
• Blower Type: Direct Drive
• Frame Size: 48
• Frequency Rating: 60 Hz
• HP Rating: 1/4 hp
• Item Name: Condenser Fan Motor
• Motor Enclosure: Totally Enclosed Air Over
• Number of Speeds: 1
• Phase: 1 ph
• RPM: 1100 rpm
• Rotation: CWLE
• Shaft Size: 1/2 in Dia
• Voltage Rating: 208/230 VAC
