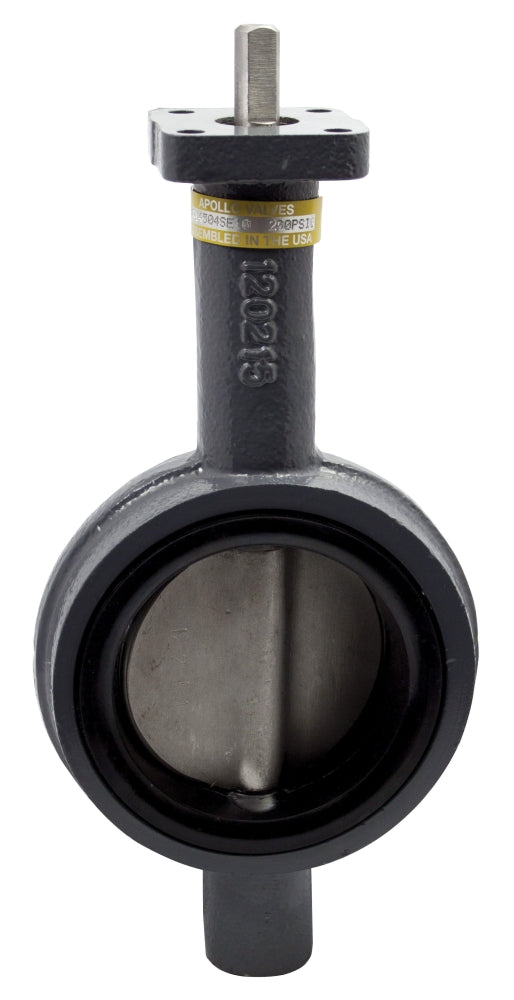

Conbraco WD145-04-DN11 4 Flanged x Flanged 200 PSI Lead-Free Ductile Iron Butterfly Valve

Product Description

The Conbraco WD145-04-DN11 is a lead-free, ductile iron butterfly valve with a nominal size of four inches. This one-piece wafer valve is designed for use in HVAC, industrial, and commercial applications. It features a ten-position handle for actuation and is rated for pressures up to 200 PSI.

• Lead-free construction
• Pneumatic actuator capable
• Flow rate of 600 Cv

Product Highlights

This valve is suitable for various plumbing needs and complies with UPC and ANSI standards.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750956461

Technical Specifications

• Type: 1-Piece, Wafer
• Nominal Size: 4 Inch
• End Connection: Flanged x Flanged
• Body Material: ASTM A536 Ductile Iron
• Disc Material: ASTM A536 Nickel Plated Ductile Iron
• Seal Material: Buna-N Rubber
• Seat Material: Black Buna-N Rubber
• Temperature Rating: 10 to 180 Deg F
• Pressure Rating: 200 PSI
• Inclusions/Features: 416 Stainless Steel Shaft, Pneumatic Actuator and Gear Operator
• Flow Rate: 600 Cv
• Torque Rating: 390 Inch-Pound
