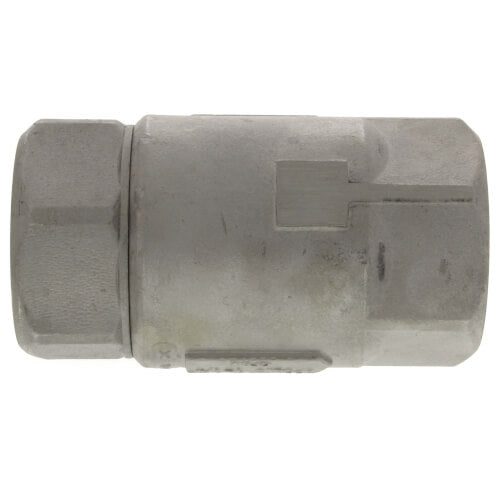

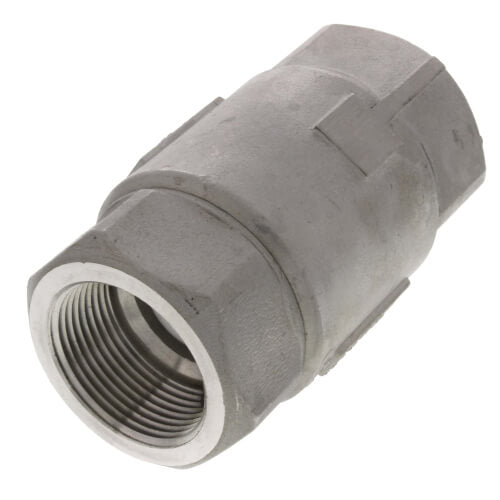

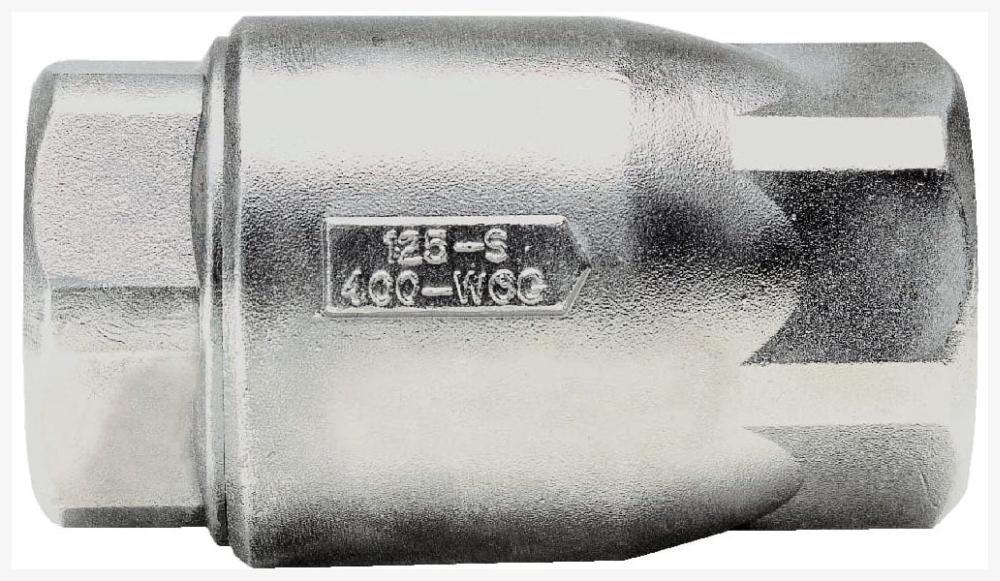

Apollo Valves 6210601 62-100 Series 1-1/4 inch Stainless Steel FNPT Check Valve

Product Description

The Apollo Valves 62-100 Series Check Valve with model number 6210601 is a stainless steel valve designed for one-direction flow control. It features a rugged stainless steel body and an RPTFE ball cone check to prevent reverse flow.

• Prevents reverse flow
• Constructed from stainless steel
• Rated for 400 psi cold working pressure

Product Highlights

Ideal for use in corrosive environments like chemical processing and pulp and paper industries. The valve is designed for applications requiring reliable flow control.

Product Information

Standard Information

• Type: Standard
• Model: 62-100
• Body Material: Stainless Steel
• Connection Size: 1-1/4 inch

Technical Specifications

• Ball Material: RPTFE
• Pressure Rating: 400 psig CWP, 125 psig SWP
• Connection Type: FNPT
• Flow Co-Efficient: 44 Cv
• Operator Type: Stainless Steel Spring
• Cracking Pressure: 0.5 psi
• Max. Temp: 350 F
• Mounting Orientation: Horizontal, Vertical
