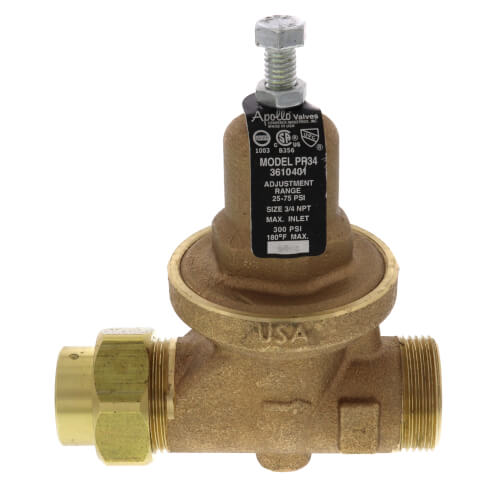

Apollo Valves 3610401 3/4 Pressure Reducing Valve Single Union FNPT x FNPT (25 - 75 psig)

Product Description

The Apollo Valves 3610401 3/4 Pressure Reducing Valve is engineered to safeguard residential and commercial water systems by managing high pressures. This valve features a durable bronze body and stainless steel strainer, ensuring long-lasting performance. Designed for dependability, the valve includes multiple pressure settings and connection types.

• Corrosion-resistant body and bonnet
• Integral stainless steel strainer
• Pressure gauge connection option

Product Highlights

This valve is constructed using ASTM-grade materials for corrosion resistance and reliability. It is 100% factory tested and features an internal thermal expansion bypass. The standard pressure setting is 50 psi, with options for both high and low pressures. Built entirely in the USA.

Product Information

Standard Information

• Brand: Apollo Valves
• Model: 3610401
• Type: Pressure reducing valve
• Connection: FNPT x FNPT

Technical Specifications

• Size: 3/4 inch
• Material: Brass, Bronze
• Inlet Type: Union FNPT
• Outlet Type: FNPT
• Pressure Range: 25 to 75 psi
• Max Inlet Pressure: 300 PSI
• Temperature Range: 33°F to 180°F
• Shipping Weight: 3.24 lbs
• Dimensions: Length 5.05 inches, Width 7.95 inches, Height 4.25 inches
