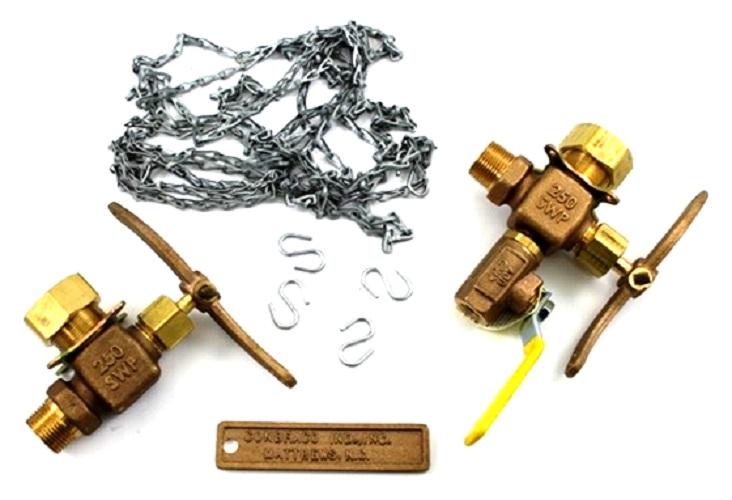

Apollo Valves 24-652-03 Water Gauge Control 3/4 Inch NPT Male Connection

Product Description

The Apollo Valves model 24-652-03 is a robust water level gauge designed for high-pressure applications with rough bronze body featuring 3/4 inch NPT male connections. This versatile gauge is ideal for monitoring liquid levels in commercial and industrial boilers.

• Automatic ball checks and chain operation.
• Maximum working pressure of 250 PSI at 400 degrees Fahrenheit and 500 PSI at 100 degrees Fahrenheit.
• Braided PTFE with aramid stem packing for enhanced durability and reliability.

Product Highlights

Incorporates a PTFE with Hypalon glass seal which ensures optimum performance even under extreme temperature conditions. Equipped with a lever on a standard 12-foot chain, this gauge facilitates easy operation from a distance, suitable for large boilers with inconveniently placed columns.

Specifications

• Brand: Apollo Valoves
• MPN: 24-652-03
• Type: Water Level Gauge
• Material: Rough Bronze
• Connection Size: 3/4 inch NPT Male
• Pressure Rating: 250 PSI at 400F, 500 PSI at 100F
• Features: Automatic ball checks, PTFE and Hypalon seal, Aramid stem packing
• Operation: Chain
