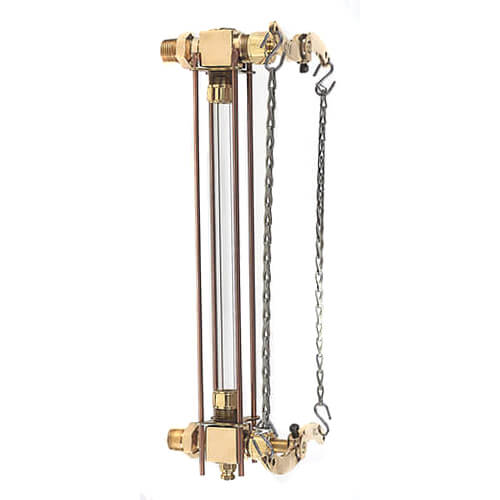

Apollo Valves 24-651-00 1/2 Inch Chain Lever Water Gauge 12 Inch Glass Rod

Product Description

The Apollo Valves model 24-651-00 leverages a robust design for monitoring water levels in large boiler systems. Its 1/2 inch chain lever mechanism, equipped with a 12-inch glass and rod, adheres to stringent ASME standard requirements, ensuring reliability and safety.

• Easy valve operation with a long 12-inch chain for hard-to-reach valves
• High durability with a glass and rod designed for high pressure and temperature conditions
• CRN registered, featuring PTFE reinforced gauge glass gasket for enhanced sealing

Product Highlights

This gauge is ideal for trade professionals working with large boilers, especially in settings where valve accessibility is challenging. It offers easy monitoring and maintenance capabilities.

Product Information

Standard Information

• Pressure Rating: 250 psig at 400 degrees Fahrenheit, 500 psig at 100 degrees Fahrenheit
• Valve Type: Full-blow valve with a 5/16 inch diameter and safety handle

Technical Specifications

• Material: High-pressure standard glass
• Size: Outer Diameter 5/8 inch, Length 12 inches
• Pipe Size: 1/2 inch
