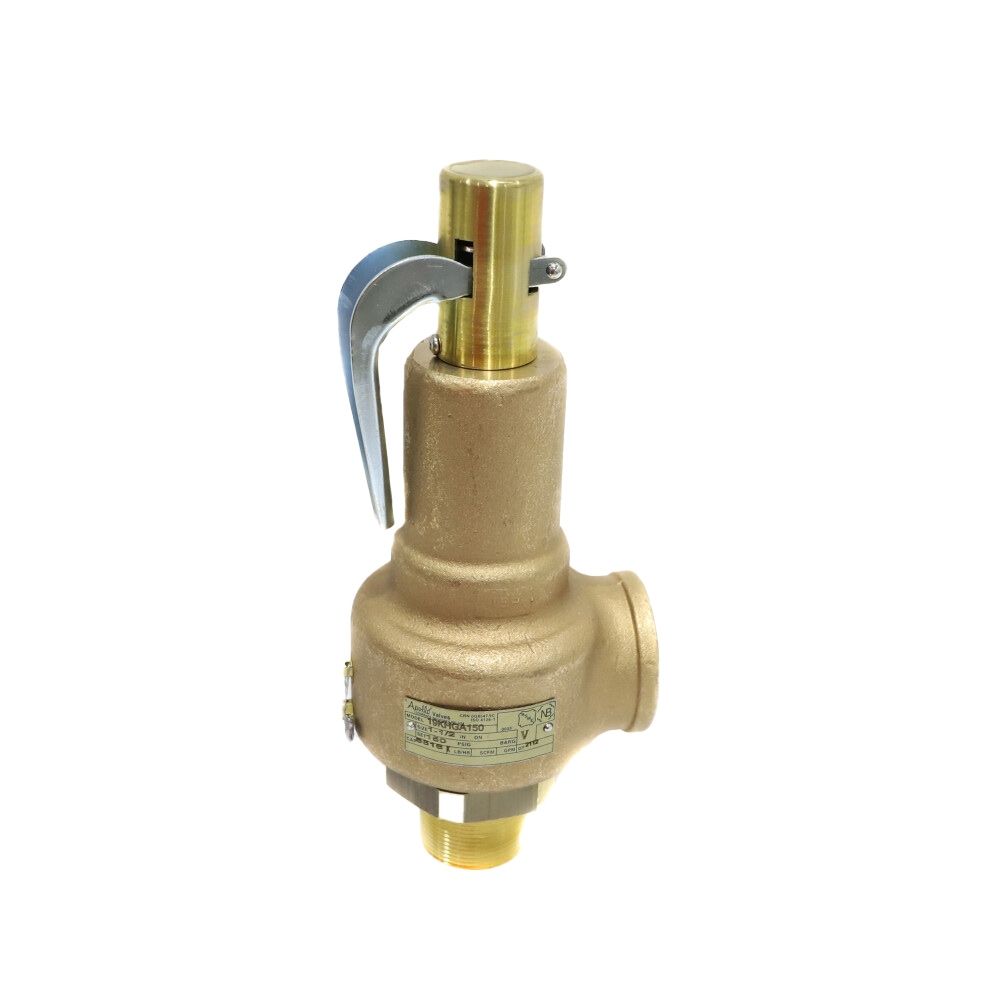

Apollo Valves 19-KHGA-150 1-1/2 x 2 Inch 150 psi Steam Relief Valve

Product Description

The Apollo Valves 19-KHGA-150 is a bronze steam pressure safety relief valve, designed for efficient and reliable performance in various steam applications. This valve features a 1-1/2 inch male NPT inlet and a 2 inch female NPT outlet, and it is set to operate at 150 psi with a steam capacity of 6,616 lbs/hr.

• High-capacity steam relief valve
• Bronze body with stainless steel springs
• Pressure set at 150 psi

Product Highlights

The Apollo Valves 19-KHGA-150 safety relief valve is ideal for use with steam boilers, sterilizers, pressure vessels, compressors, and pressure piping systems. It is National Board capacity certified and available in multiple sizes, from 1/2 inch to 2-1/2 inches NPT.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 19-KHGA-150

Technical Specifications

• Model: 19-Series
• Body Material: Bronze
• Valve Application: Steam
• Valve Size: 1-1/2 inches
• Valve Connection: NPT
• Piping Configuration: Angle
• Max Pressure: 150 psi
• Capacity: 6616 lbs/hr
• UPC: 670750963490
• Replaces: 19-602-35V
• Temperature: 406 degrees Fahrenheit
• Connection Type: MPT x FPT
