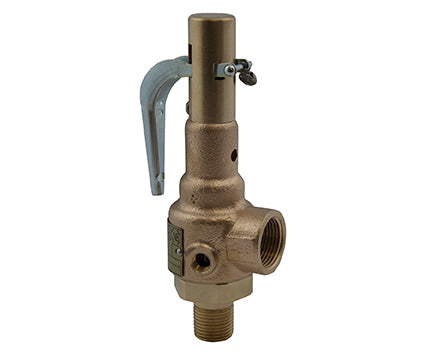

Apollo Valves 19-KHGA-15 19 Series Safety Relief Valve 15 PSI Size 1.5x2 Inch Replacement 19-KHGA-15

Product Description

The Apollo Valves model 19-KHGA-15 is a high-capacity safety relief valve designed for steam, air, and gas services. Constructed with durable bronze, this valve is an essential component for steam boilers, pressure vessels, and other high-pressure applications.

• Rated for pressures up to 15 psi and temperatures up to 406 degrees Fahrenheit.
• Offers a flow capacity of 1,240 pounds per hour, ensuring efficient operation.
• Features National Board capacity certification and compliance with ASME and CE standards.

Product Highlights

This safety valve is equipped with a stainless steel spring and optional stainless steel trim for enhanced performance and durability. Ideal for various setups including sterilizers and compressors.

Product Information

Standard Information

• Inlet Type: MNPT
• Outlet Type: FNPT

Technical Specifications

• Size: 1.5 inches x 2 inches
• Max. Capacity lbs/hr: 1240
• Pressure Set Point: 15 psi
• Max Temp (F): 406
• Connection Type: MPT x FPT
• Weight: 11.7 pounds
• Country of Origin: United States
