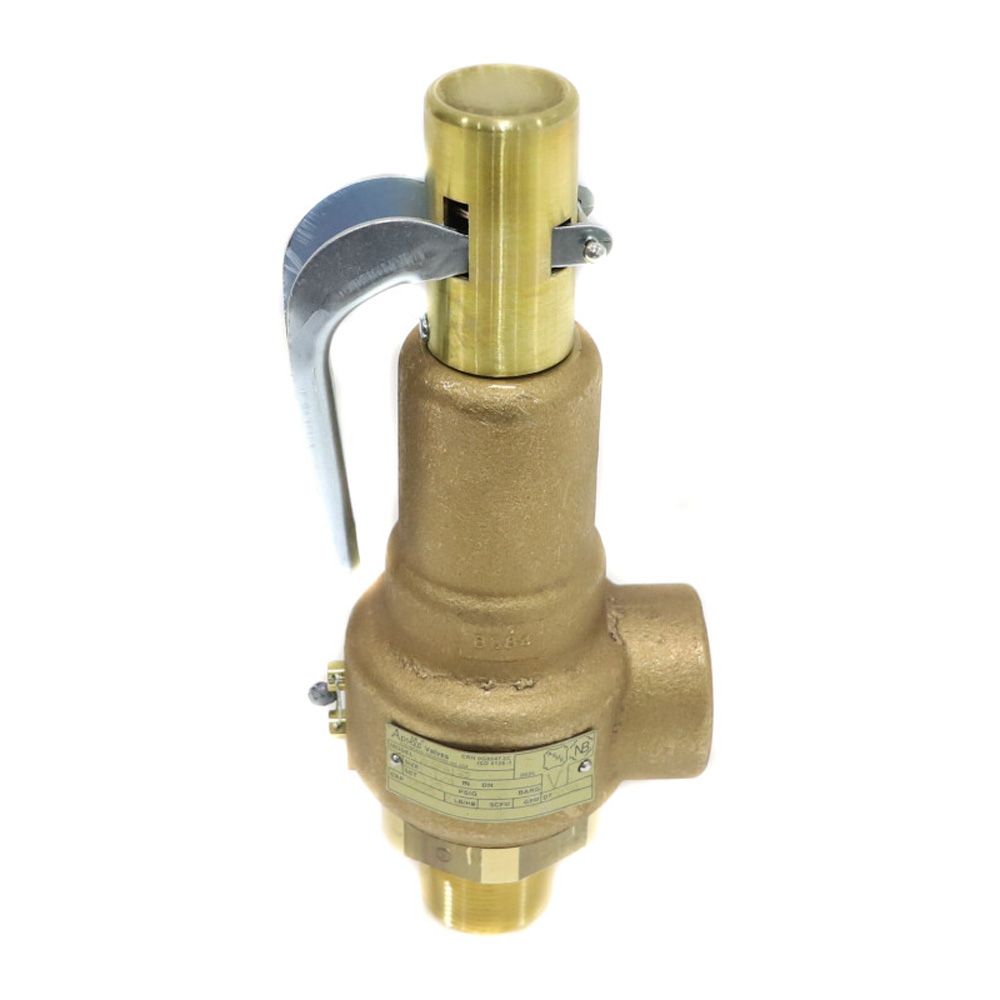

Apollo Valves 19-KGFA-125 Bronze Pressure Relief Valve for Steam 1-1/4 inch NPT 125 psi

Product Description

The Apollo Valves model 19-KGFA-125 is a robust bronze pressure relief valve engineered for use in steam applications. Known for its reliability in steam pressure control, this valve functions optimally within a range of 15 to 300 psig, offering durability and efficiency.

• Achieves perfect closure with its metal-to-metal seating lapped to optical flatness.
• Features a 1-1/4 inch MNPT inlet and 1-1/2 inch FNPT outlet for superior flow performance.
• Body made from high-quality bronze ensures longevity and resistance to corrosion.

Product Highlights

This valve is essential for applications requiring precise pressure management within boilers, sterilizers, and other equipment. It supports a maximum temperature of 406 degrees Fahrenheit and includes a stainless steel spring for reliable operation.

Product Information

Standard Information

• Inlet Type: MNPT
• Outlet Type: FNPT

Technical Specifications

• Body Material: Bronze
• Valve Size: 1-1/4 inches
• Max Pressure: 250 psi WSP, 300 psi WOG
• Max. Capacity lbs/hr: 3595
• Max Temp (F): 406 degrees
