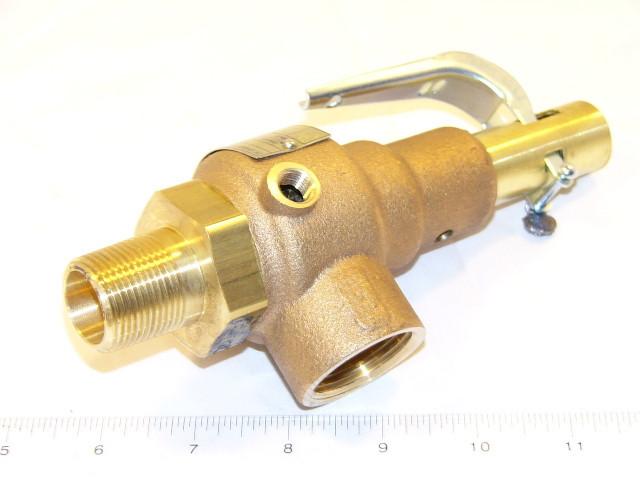

Apollo Valves 19-KEDA-15 Safety Relief Valve 3/4 inch MNPT x 1 inch FNPT 310 LBS/HR 15 PSI

Product Description

The Apollo Valves 19-KEDA-15 Safety Relief Valve is engineered for optimal performance in steam, air, and gas systems. This valve is a crucial component for a variety of heavy-duty industrial applications, including boilers, sterilizers, and pressure vessels.

• Pressure settings from 15 to 300 psi for versatile use
• Maximum temperature capacity of 406 degrees Fahrenheit
• Features a wide wrenching hex for easy installation

Product Highlights

This valve is designed with a bronze body and stainless steel trim, ensuring durability and reliability. The full-bore, double-ring design enhances flow capacity, while the tapped body drain allows for efficient condensate removal. It is also equipped with a stainless steel spring for consistent performance.

Technical Specifications

• Material: Bronze body with stainless steel trim
• Size: 3/4 inch MNPT x 1 inch FNPT
• Pressure Set Point: 15 psi
• Maximum Capacity: 310 lbs/hr
• Maximum Temperature: 406 degrees Fahrenheit
• Connection Type: MNPT x FNPT
• Compliance: ASME/CE, CRN registered
• Country of Origin: United States
