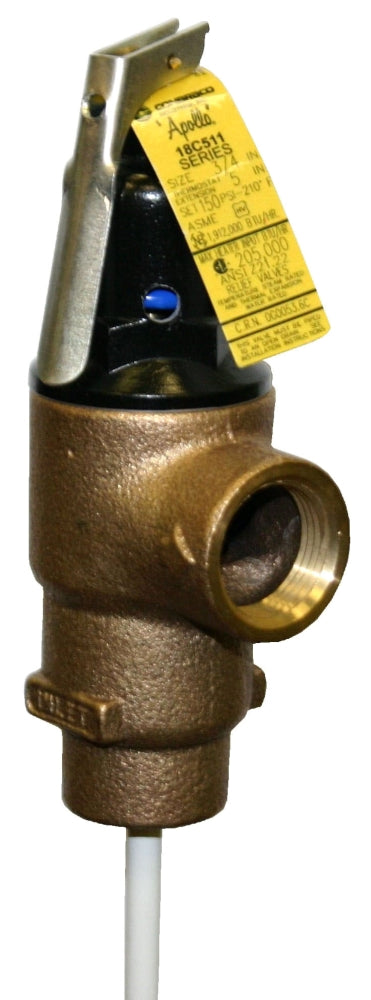

Conbraco 18C5215150 1, MPT x FPT, 125/150 PSI, Bronze, Automatic, Temperature and Pressure Relief Valve

Product Description

The Conbraco 18C5215150 is a one inch automatic temperature and pressure relief valve. This valve works to protect high capacity commercial hot water heaters and storage tanks. It is designed with male threaded and female threaded connections, making installation straightforward for plumbing professionals.

• Automatic operation for reliable pressure control
• Constructed from bronze material for durability
• Set pressure range of 125/150 PSI at 210 degrees Fahrenheit

Product Highlights

This valve includes a nylon tube and a stainless steel pin for enhanced functionality. The disc is made of silicone, ensuring effective sealing under high pressures. It's compliant with ANSI, ASME, and CSA standards, making it suitable for commercial applications.

Product Information

Standard Information

• Brand: Conbraco
• UPC: 670750187155

Technical Specifications

• Type: Automatic
• Inlet Size: 1 Inch
• Outlet Size: 1 Inch
• End Connection: Male Threaded x Female Threaded
• Body Material: ASTM B584 Bronze
• Spring Material: 304 Stainless Steel
• Stem Material: ASTM B16 Brass
• Disc Material: Silicone
• Set Pressure Range: 125/150 PSI at 210 Degrees Fahrenheit
• Inclusions/Features: Nylon Tube, 302 Stainless Steel Pin
• Application: Commercial
• Applicable Standard: ANSI Z21.22, ASME, CSA
