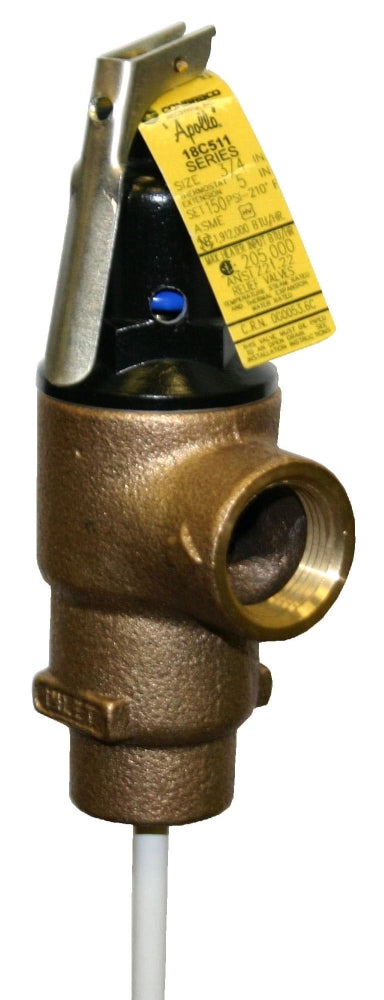

Apollo Valves 18C5115150 3/4, MPT x FPT, 150 PSIG, 1912000 BTU/Hr, Bronze, Automatic, Safety Relief Valve

Product Description

The Conbraco 18C5115150 is a three-fourths inch automatic safety relief valve designed for high-capacity commercial water heaters and storage tanks. This valve features a male threaded x female threaded end connection, ensuring compatibility with various systems. Built from ASTM B584 bronze, this valve provides reliable performance at a set pressure of one hundred fifty PSIG and a temperature rating of two hundred ten degrees Fahrenheit.

• Automatic reseating feature
• Applications include storage tanks and water heaters
• Corrosion-resistant, featuring a coated element

Product Highlights

This relief valve is ideal for protecting equipment from excessive pressure, ensuring safety and efficiency in heating systems.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750121302

Technical Specifications

• Inlet Size: 3/4 Inch
• Outlet Size: 3/4 Inch
• End Connection: Male Threaded x Female Threaded
• Body Material: ASTM B584 Bronze
• Spring Material: 304 Stainless Steel
• Seal Material: ASTM B16 Brass
• Disc Material: Silicone
• Set Pressure Range: 150 PSIG
• Temperature Rating: 210 Deg F
• Element Length: 4.38 Inch
• Capacity: 1912000 BTU/Hour
