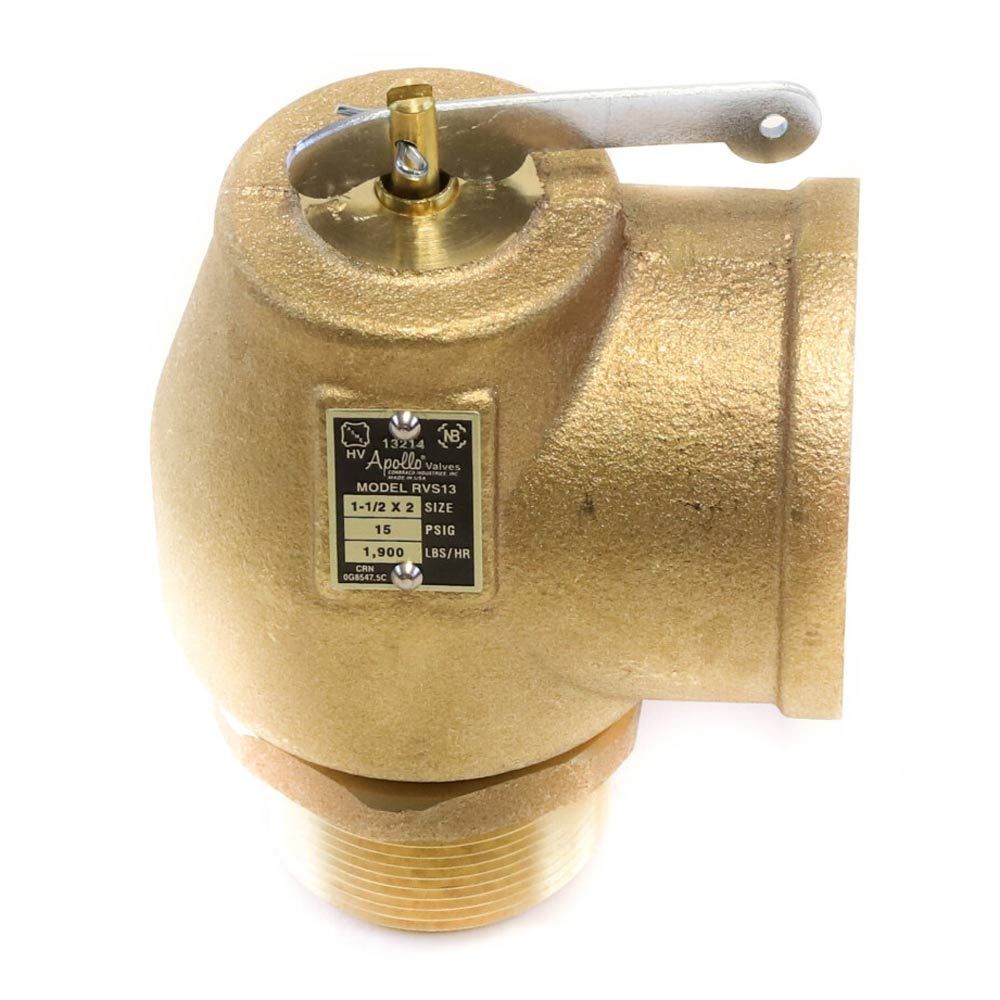

Apollo Valves 13-214-B15 Low Pressure Steam Safety Valve 1-1/2 in. 15 psi 1900 lb/hr

Product Description

The Apollo Valves 13-214-B15 low pressure steam safety valve ensures protection for steam heating boilers and similar systems. Designed to meet ASME section IV standards, it is a reliable choice for trade professionals.

• 1-1/2 inches MNPT x 2 inches FNPT connection
• Standard set pressure of 15 psi
• 1900 lb/hr capacity

Product Highlights

Ideal for steam heating boilers, this valve features a corrosion-resistant bronze body, a stainless steel spring, and a compact design with a top outlet option. It is certified by ASME, ISO 9001 standard, HV, NB, and CRN 0G8547.5C.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 13-214-B15
• Manufacturer: Apollo Valves
• Model: RVS13-112
• UPC: 670750221170
• Availability: In stock

Technical Specifications

• Capacity: 1900 lb/hr
• Connection Size: 1-1/2 in
• Connection Type: MNPT x FNPT
• Dimension: 4.57 in H
• Material: Bronze
• Model: 13-200
• Pressure Rating: 15 psi
• Seat Material: Modified TFE
• Temperature Rating: 250 deg F
• Trim Material: Brass
• Type: Low Pressure
• Standards/Certifications: ASME section IV, ISO 9001 standard, HV, NB, CRN 0G8547.5C approved
• Applications: For protection of steam heating boilers, systems and similar equipment
