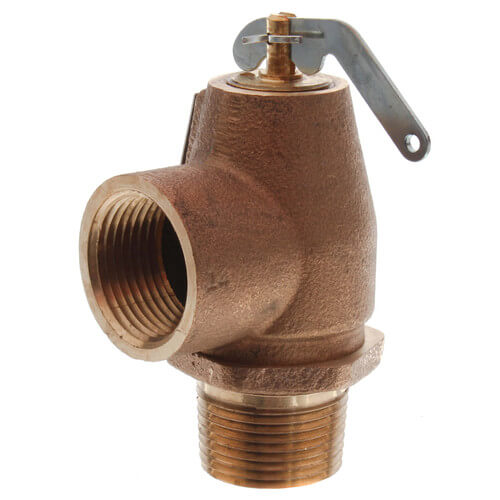

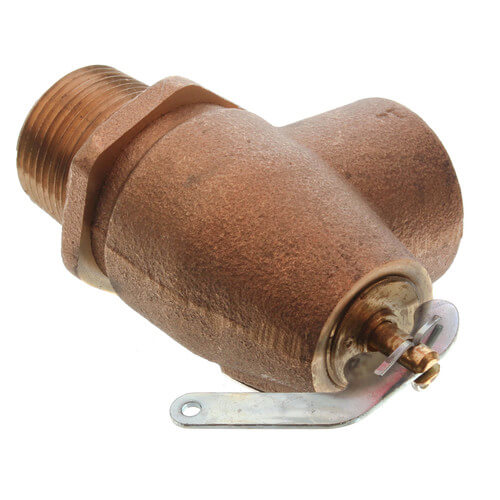

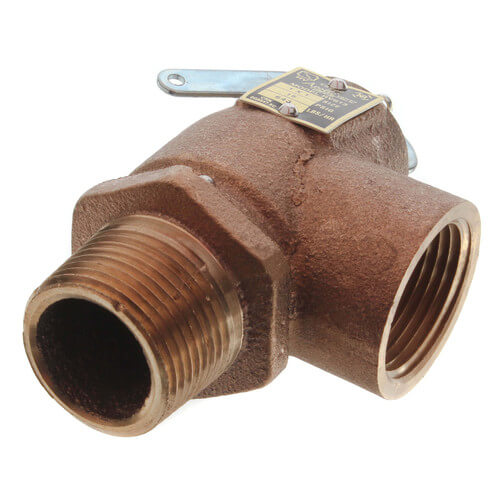

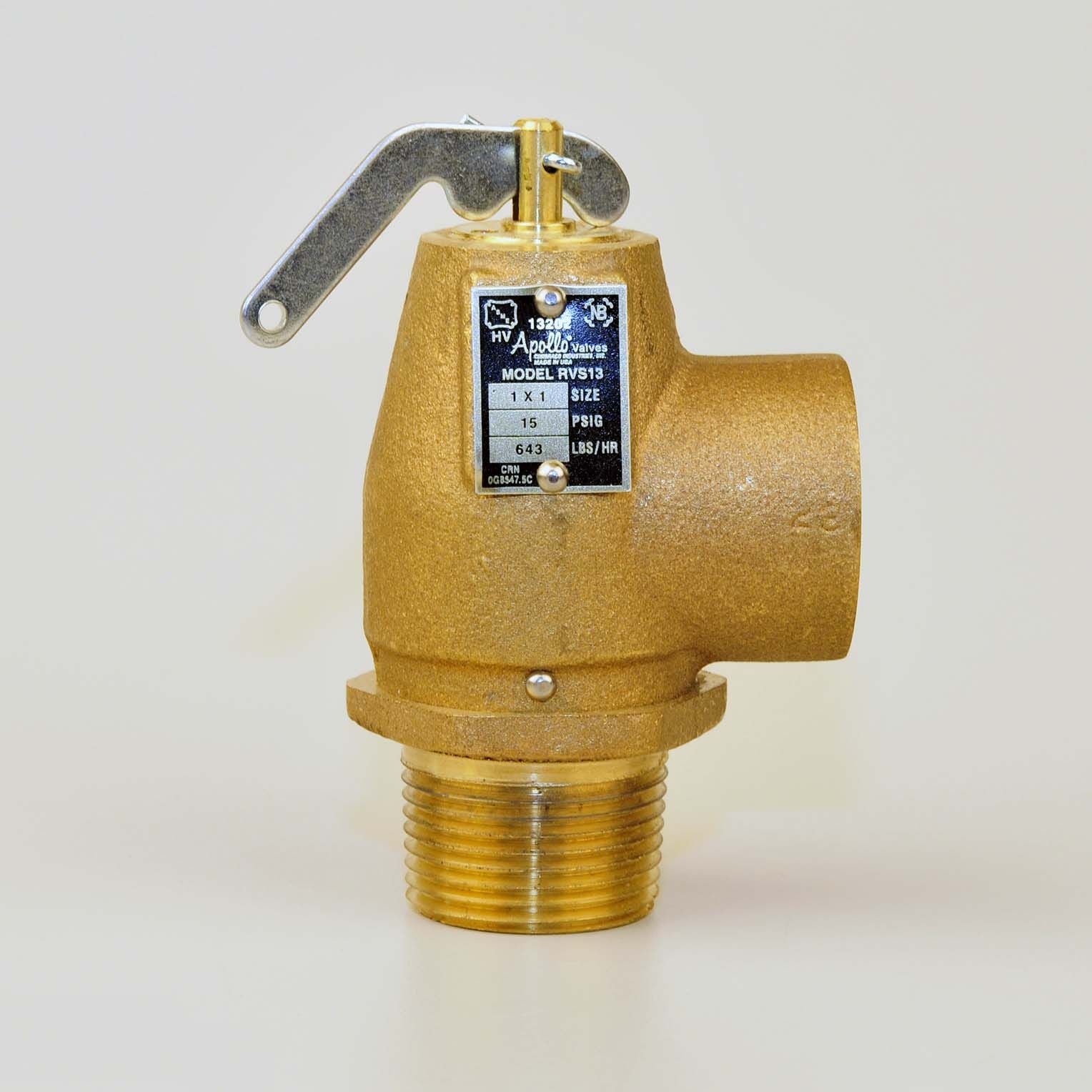

Apollo 13-202-B15 Bronze Safety Relief Valve 15 psi 1 Inch NPT

Product Description

The Apollo 13-202-B15 Bronze Safety Relief Valve is designed to provide reliable protection for low-pressure steam heating boilers and supply systems. Featuring a 15 psi pressure setting, it meets ASME Section IV code requirements and is suitable for various steam applications.

• Flat seat with PTFE faced disc for positive seal
• Standard pressure set at 15 psi
• Positive drainage of condensate

Product Highlights

This valve ensures safe operation of steam heating boilers, providing a consistent release of excess pressure. The bronze construction enhances its durability and resistance to corrosion.

Product Information

Standard Information

• Brand: Apollo Valves
• Manufacturer: Conbraco
• Model: RVS131
• MPN: 13-202-B15

Technical Specifications

• Pressure Setting: 15 psi
• Inlet Size: 1 MPT
• Outlet Size: 1 FPT
• Body Material: Bronze
• Valve Application: Steam
• Piping Configuration: Angle
• Max Pressure: 15 psi WSP, 150 psi WOG
• Max Capacity: 643 lbs/hr
• Weight: 1.16
