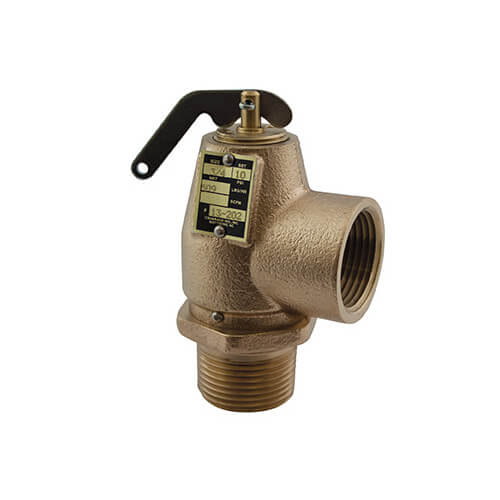

Apollo Valves 13-202-B08 1 inch MNPT x FNPT RVS13 Low Pressure Steam Safety Valve 8 psi

Product Description

The Apollo Valves 13-202-B08 is a robust 1 inch MNPT x 1 inch FNPT RVS13 low pressure steam safety valve, engineered to ensure the safety of steam heating boilers and systems. Manufactured by Apollo Valves, this valve is designed to comply with ASME Section IV code requirements.

• Equipped with a flat seat and a PTFE faced disc for a guaranteed positive seal.
• Standard set pressure is 8 psi, with a maximum capacity of 643 lbs/hr.
• Features positive drainage of condensate from the seat area and is National Board certified.

Product Highlights

This valve is recognized for its durability and reliability in maintaining boiler safety. It is national board certified at 8 psi pressure and comes with a CRN registration for Canada.

Product Information

Standard Information

• Material: Bronze
• Connection Type: MNPT x FNPT

Technical Specifications

• Max Temperature: 250 degrees Fahrenheit
• Size: 1 inch x 1 inch
• Pressure Set Point: 8 psi
• Max. Capacity lbs/hr: 643
