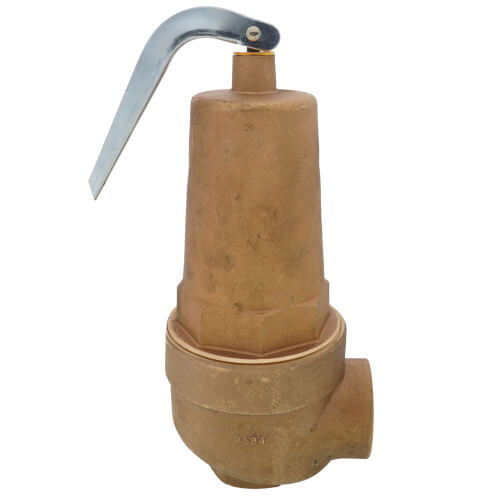

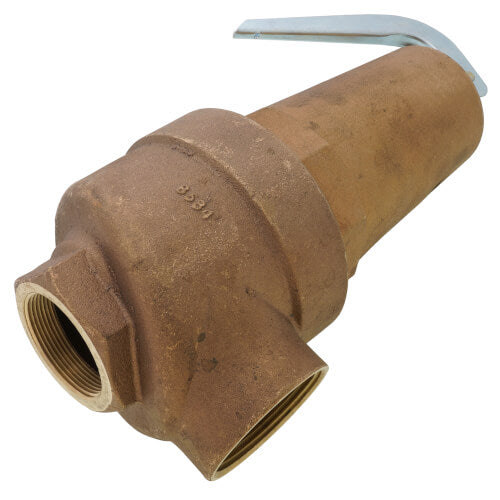

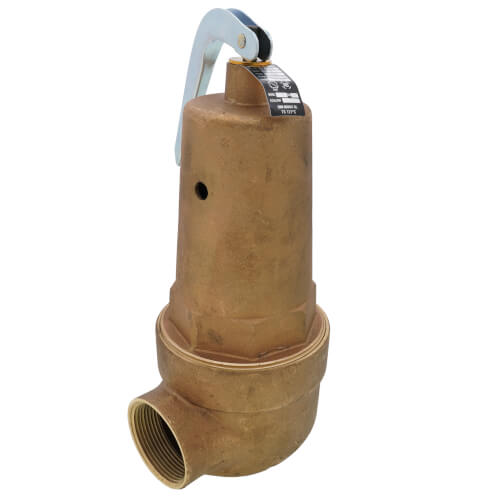

Apollo Valves 10-618-12 RVW61 Relief Valve 60 psi 2 Inch FNPT 10305000 BTU

Product Description

The Apollo Valves 10-618-12 RVW61 Relief Valve is engineered for robust performance in managing high BTU outputs in heating systems. Featuring a 2 inch FNPT inlet and 2.5 inch FNPT outlet, this valve excels in maintaining system integrity by mitigating excessive water pressure. Perfectly suited for both commercial and residential heating applications.

• BTU capacity of 10,305,000, ensuring efficient handling of high heat outputs.
• Bronze construction offers durability and corrosion resistance.
• Certified by the National Board for pressure range ensures reliable performance.

Product Highlights

This valve is designed with a silicone seat and a fabric-reinforced molded diaphragm which isolates the spring from water, guaranteeing consistent operation and longevity. The elevated seat design promotes drainage away from critical areas, enhancing valve function and protection.

Product Specifications

Technical Specifications

• Material: Bronze
• Connection Type: FNPT x FNPT
• Size: 2 inches x 2.5 inches
• Pressure Set Point: 60 psi
• Maximum Temperature: 250 degrees Fahrenheit
• Weight: 22.31 pounds
• Country of Origin: United States
