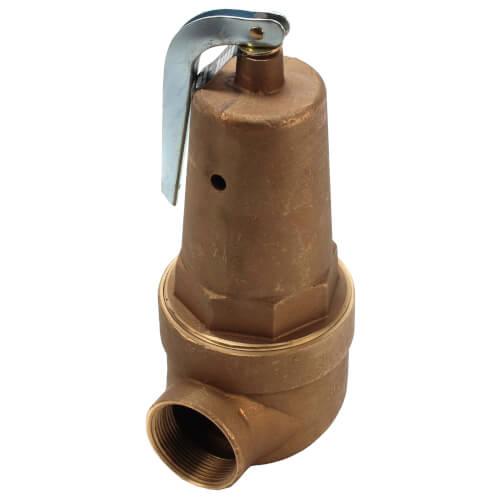

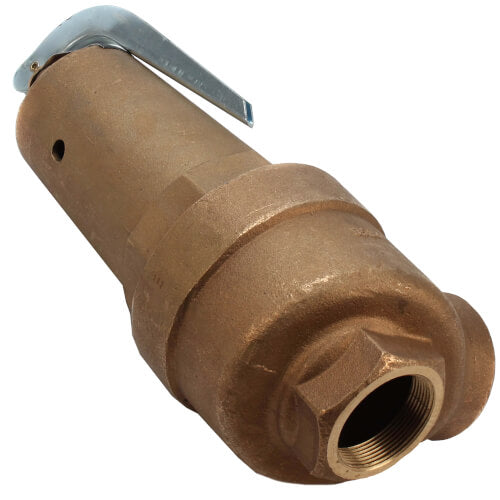

Apollo Valves 10-618-05 Hot Water Relief Valve 2 Inch FNPT x 2-1/2 Inch FNPT - 6091000 BTU Bronze 30 PSI

Product Description

The Apollo Valves 10-618-05 is a high-capacity, angle pattern safety relief valve specifically designed for hot water heating systems and equipment. Engineered to protect against excessive pressure, this bronze valve is ideal for maintaining system integrity and safety.

• Features a 2 inch FNPT x 2-1/2 inch FNPT connection
• Constructed with a bronze body for corrosion resistance
• Isolated spring chamber to prevent fluid contact with spring

Product Highlights

With a robust design capable of managing a high BTU capacity of 6091000, the Apollo Valves 10-618-05 ensures reliable performance. It can withstand water temperatures up to 250 degrees Fahrenheit making it suitable for a range of high-temperature applications.

Product Information

Standard Information

• Model: RVW61
• Max Pressure: 30 psi WSP

Technical Specifications

• Body Material: Bronze
• Valve Application: Hot Water
• Valve Size: 2 inch
• Valve Connection: NPT
• Piping Configuration: Angle
• Weight: 22.94
• Height: 8.95
• Length: 18.4
• Width: 14.55
