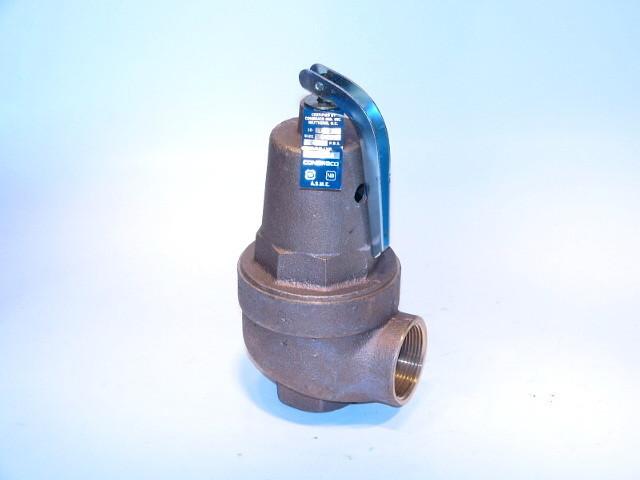

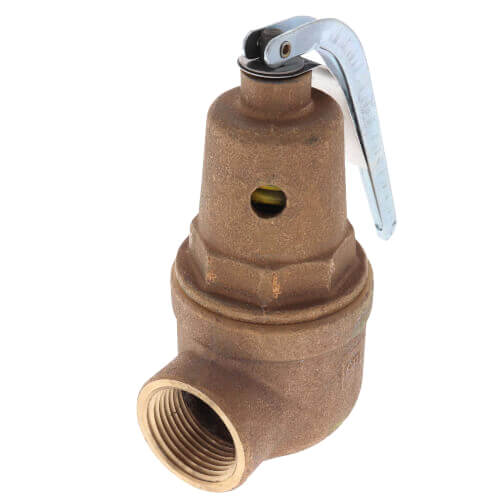

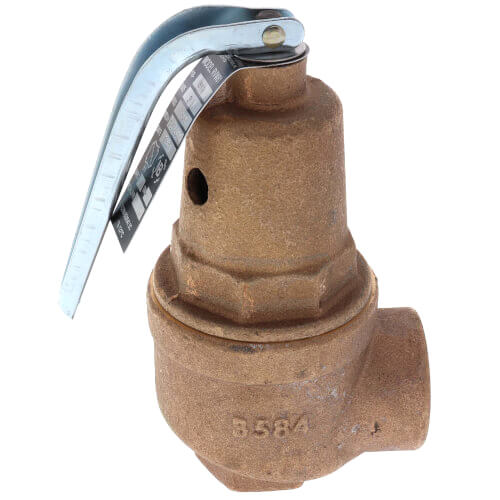

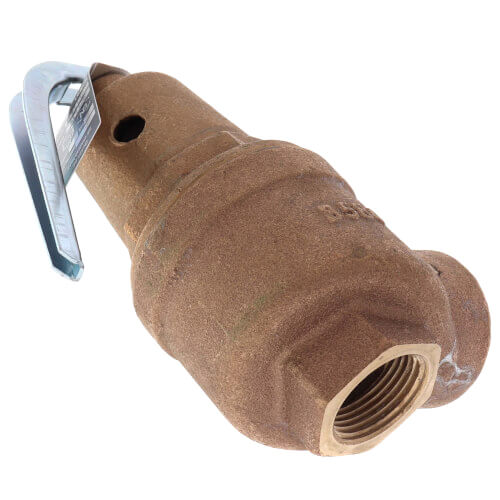

Apollo Valves 10-616-15 High-Capacity Bronze Relief Valve 1.25x1.5 inch 75 PSI

Product Description

The Apollo Valves model 10-616-15 is a high-capacity bronze relief valve designed specifically for heating applications, featuring a 1.25 inch FNPT inlet and a 1.5 inch FNPT outlet capable of handling up to 5,535,000 BTU at 75 PSI.

• ASME Section IV certified with the national board for boiler and pressure vessel inspectors.
• Corrosion-resistant bronze construction ensures durability and longevity.
• Diaphragm isolated spring chamber to prevent fluid contact with the spring and other internal components.

Product Highlights

This valve is engineered to protect against excessive pressure due to control failures, regulating BTU inputs safely. Its elevated seat design promotes drainage away from the seating area, ensuring reliable operation even under stressful conditions.

Technical Specifications

• Connection Type: FNPT x FNPT
• Pressure Set Point: 75 psi
• Capacity (BTU): 5,535,000
• Inlet Size: 1.25 inches
• Outlet Size: 1.5 inches
