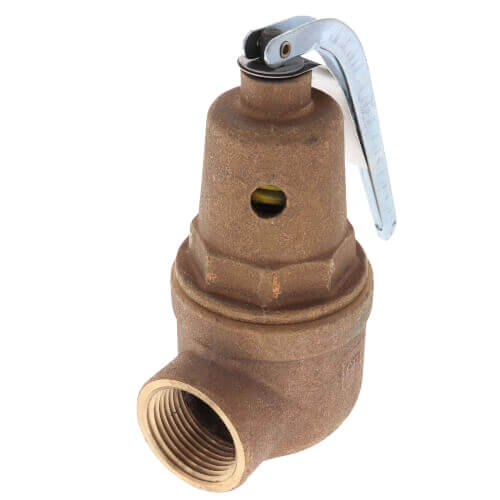

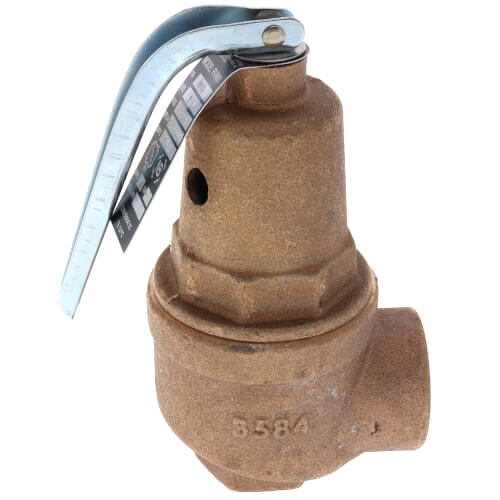

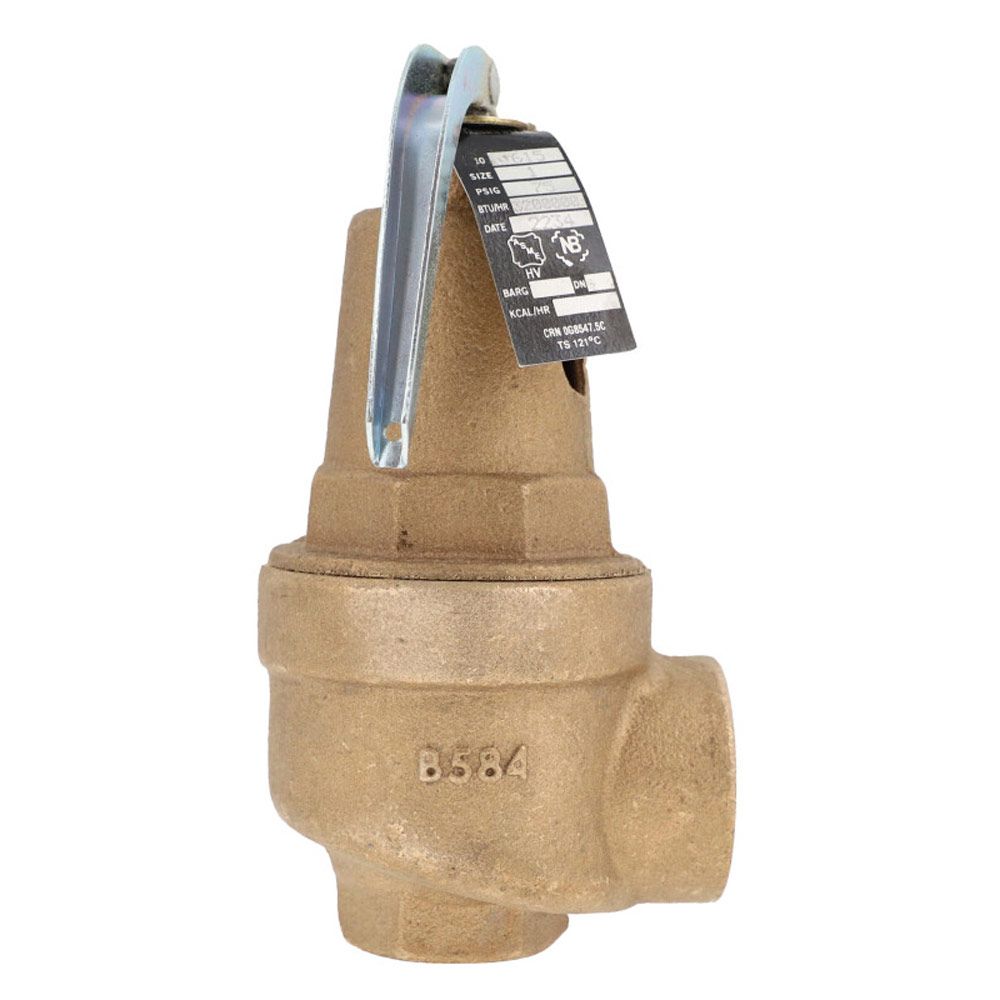

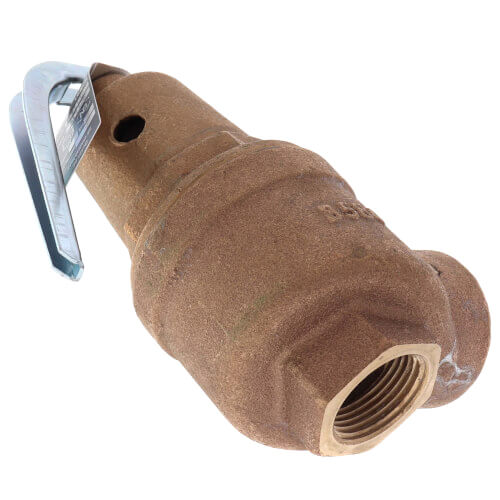

Apollo Valves 10-615-15 Safety Relief Valve 75 PSI 3,200,000 BTU

Product Description

The Apollo Valves model 10-615-15 is a bronze safety relief valve, essential for regulating water pressure and preventing system damage. Ideal for high BTU systems, this valve offers both reliability and durability.

• Diaphragm isolated spring chamber ensures consistent performance.
• Corrosion-resistant bronze build enhances longevity.
• ASME Section IV certified; meets 97/23/EC directives.

Product Highlights

This valve features a high capacity for BTU management and is certified to perform under substantial pressure variations. It operates effectively up to 250 degrees Fahrenheit, ensuring safety and performance in high-temperature conditions.

Product Information

Standard Information

• Brand: Apollo Valves
• Model: RVW61

Technical Specifications

• MPN: 10-615-15
• Material: Bronze
• Inlet/Outlet: 1 inch FNPT x 1-1/4 inch FNPT
• Pressure Rating: 75 psi
• Capacity: 3,200,000 BTU
• Max Temp: 250°F
• Weight: 3.99 lbs
