Apollo Valves 10-615-10 1 inch FNPT x 1-1/4 inch FNPT RVW61 2,295,000 BTU Bronze Hot Water Relief Valve 50 psi

Product Description

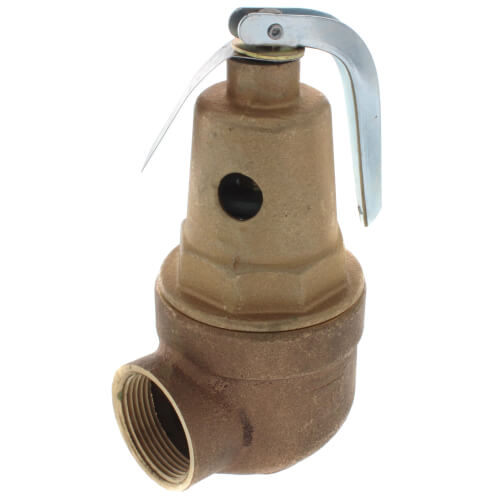

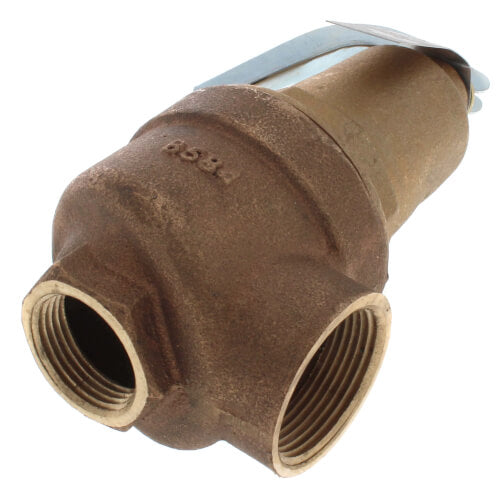

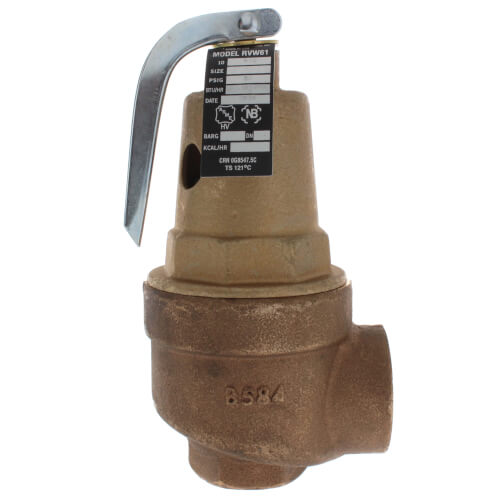

The Apollo Valves model 10-615-10 is a robust bronze hot water relief valve, designed to handle pressures up to 50 psi and a maximum temperature of 250 degrees Fahrenheit. This valve is ideal for regulating high BTU outputs in heating systems, ensuring safety and efficiency.

• Elevated seat design enhances drainage away from the valve seat area.
• Silicone seat and fabric-reinforced diaphragm for durable isolation of the spring from water.
• Entire pressure handling range certified by the National Board.

Product Highlights

This valve features a female National Pipe Taper (FNPT) inlet and outlet, allowing easy integration into existing plumbing configurations. Its high BTU capacity efficiently manages thermal expansion in heating systems.

Product Information

Standard Information

• Material: Bronze
• Connection Type: FNPT x FNPT

Technical Specifications

• Size: 1 inch x 1-1/4 inch
• Pressure Set Point: 50 psi
• Capacity (BTU): 2,295,000
• Maximum Temperature: 250°F
• Weight: 3.885 pounds
• Shipping Dimensions: 7.85 inches x 4.55 inches x 3.25 inches
