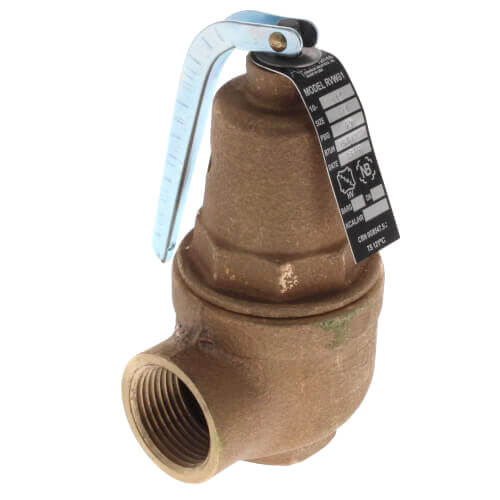

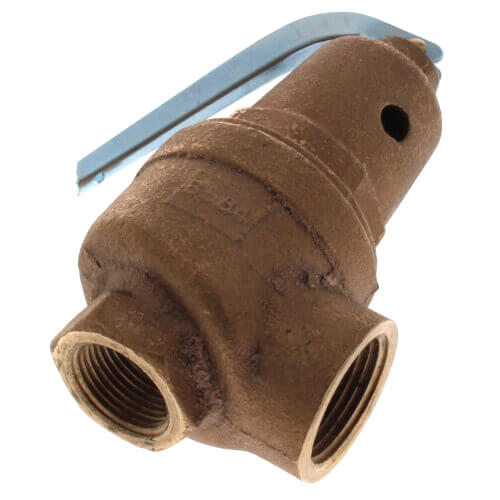

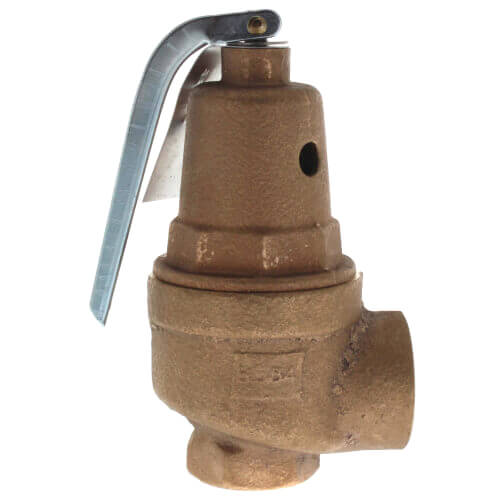

Conbraco 10-614-34 3/4 Inlet, 1 Outlet, ASME Section IV Safety Valve 150 Max psi, Bronze

Product Description

The Conbraco 10-614-34 is a reliable safety valve designed for high-capacity hot water systems. This valve features a three-quarter inch inlet and a one-inch outlet. It operates at a maximum pressure of 150 psi, making it suitable for a range of applications. The valve is constructed from durable bronze to ensure long-lasting performance.

• Rated for a maximum capacity of 3,655,000 BTU
• Equipped with an elevated seat for effective drainage
• Compliant with A.S.M.E. Section IV safety standards

Product Highlights

This safety valve is ideal for protecting against excessive water pressure and is recognized for its high BTU capacity rating.

Product Information

Standard Information

• Material: Bronze
• Country Of Origin: USA

Technical Specifications

• Inlet Size: 3/4 inch
• Outlet Size: 1 inch
• Maximum Operating Pressure: 150 psi
• BTU Rating: 3,655,000 BTU
• Maximum Temperature: 250°F
• Product Type: A.S.M.E. Section IV Safety
