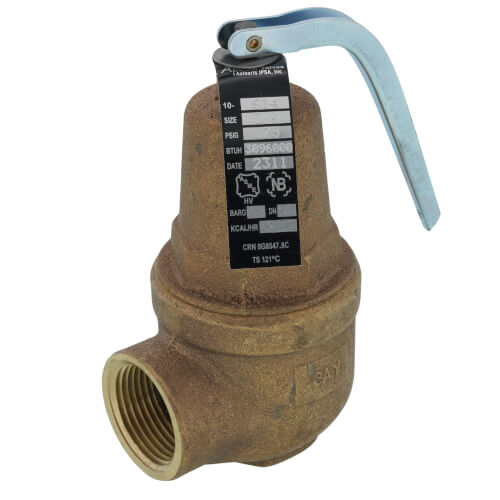

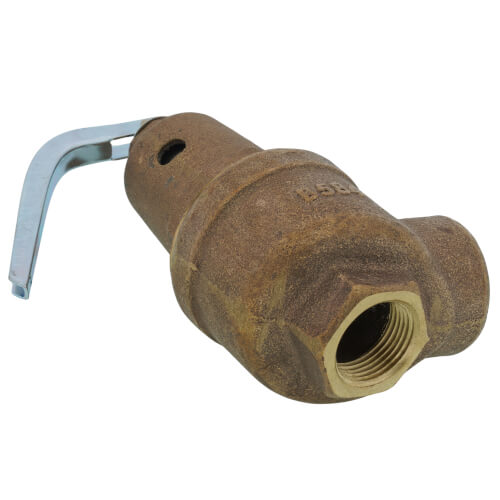

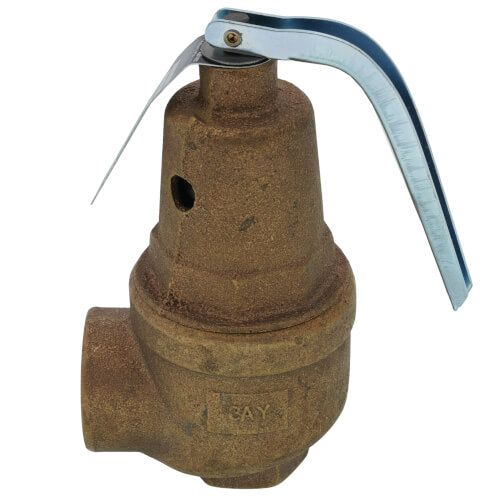

Apollo Valves 10-614-25 RVW61 Relief Valve 125 psi Replacement 10-614-25

Product Description

The Apollo Valves 10-614-25 Safety Relief Valve provides reliable over-pressure protection for hot water heating systems. Manufactured in the USA, this valve features a bronze body and a silicone seat, designed to handle a capacity of 3,096,000 BTU at pressures up to 125 psi.

• Certified under ASME Section IV for heating equipment safety.
• Constructed with corrosion-resistant materials for durability.
• Equipped with a diaphragm isolated spring chamber to enhance performance.

Product Highlights

This high-capacity relief valve offers precise pressure control and is suited for both commercial and residential applications. It stands out with its compliance with Directive 97/23/EC (PED) and features materials like ASTM B584 bronze for the body/cap and alloy steel for the spring.

Product Information

Standard Information

• Inlet Type: FNPT
• Outlet Type: FNPT

Technical Specifications

• Connection Type: FNPT x FNPT
• Pressure Set Point: 125 psi
• Material: Bronze body, Silicone seat, Alloy steel spring
• Weight: 2.39 pounds
• Dimensions: 5.9 x 3.7 x 3.25 inches
