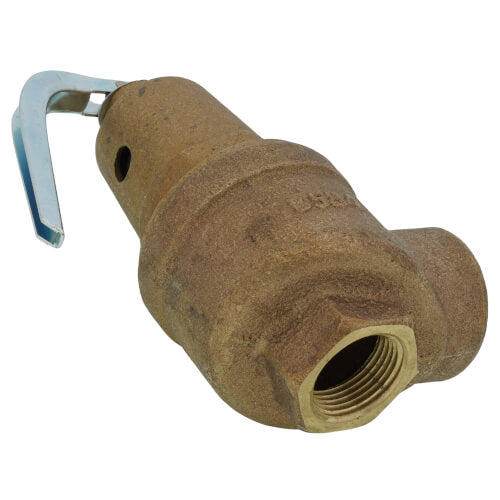

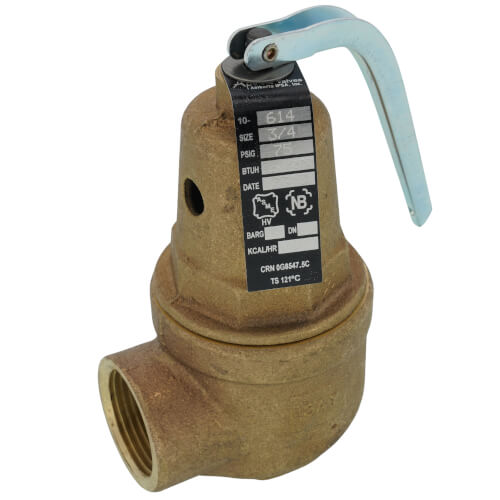

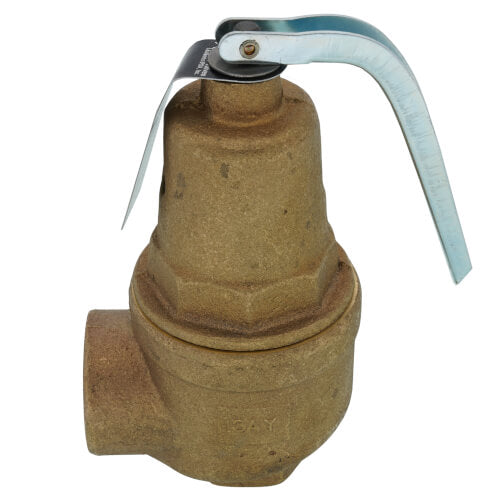

Apollo Valves 1061415 3/4 FNPT x 1 FNPT RVW61 1,977,000 BTU Bronze Hot Water Relief Valve 75 psi

Product Description

The Apollo Valves 1061415 is a 3/4 FNPT x 1 FNPT bronze hot water relief valve designed for high-capacity heating applications. It handles up to 1,977,000 BTUs and operates at a pressure set point of 75 psi. This valve serves to prevent excessive water pressure that can occur if controls fail to regulate BTU input. With an elevated seat, it effectively drains water away from the seat area, enhancing reliability and safety.

• High BTU capacity rating
• Bronze body and spring cage
• Maximum temperature service up to 250 degrees Fahrenheit

Product Highlights

This relief valve is constructed with a silicone seat and a fabric reinforced molded diaphragm that isolates the spring from water at all times. It is National Board capacity certified across its entire pressure range, ensuring safe operation.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 1061415

Technical Specifications

• Size: 3/4 x 1
• Material: Bronze
• Inlet Type: FNPT
• Outlet Type: FNPT
• Max Temperature: 250°F
• Capacity: 1,977,000 BTU
• Connection Type: FNPT x FNPT
• Pressure Set Point: 75 psi
