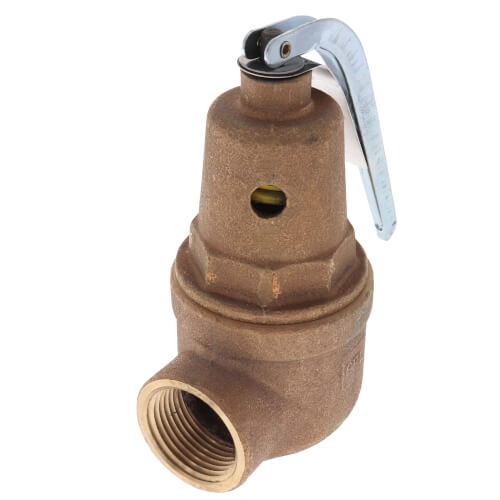

Apollo Valves 10-614-02 3/4 inch FNPT x 1 inch FNPT RVW61 746,000 BTU Bronze Hot Water Relief Valve 20 psi

Product Description

The Apollo Valves 10-614-02 is a robust bronze hot water relief valve designed for efficient handling of high BTU capacities in plumbing systems. This valve features a 3/4 inch FNPT inlet and a 1 inch FNPT outlet, suitable for a broad range of heating applications.

• High capacity BTU handling of 746,000, providing reliable safety against high pressure.
• Constructed with a durable bronze body and a silicone seat for longevity and resilience.
• Fabric-reinforced diaphragm ensures isolation of the spring from water, optimizing functional integrity.

Product Highlights

Apollo Valves constructs this relief valve to offer exceptional performance with an elevated seat design which assists in the drainage away from the seat area, preventing leakage and damage under excessive pressure conditions.

Product Information

Technical Specifications

• Connection Type: FNPT x FNPT
• Pressure Set Point: 20 psi
• Material: Bronze
• Maximum Temperature: 250 degrees Fahrenheit
• Capacity (BTU): 746,000
• Size: 3/4 inch x 1 inch
• Country of Origin: United States
