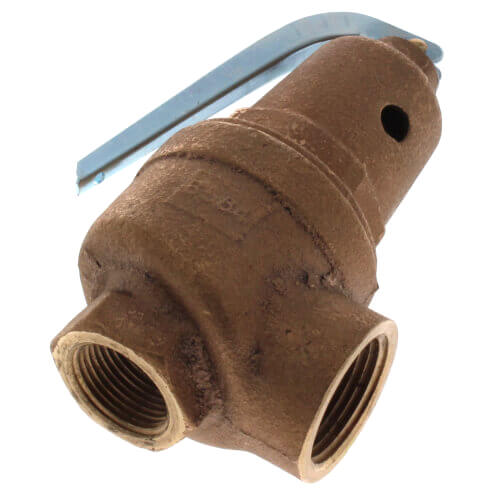

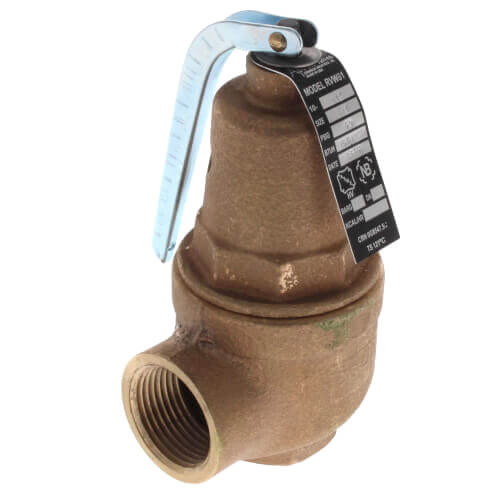

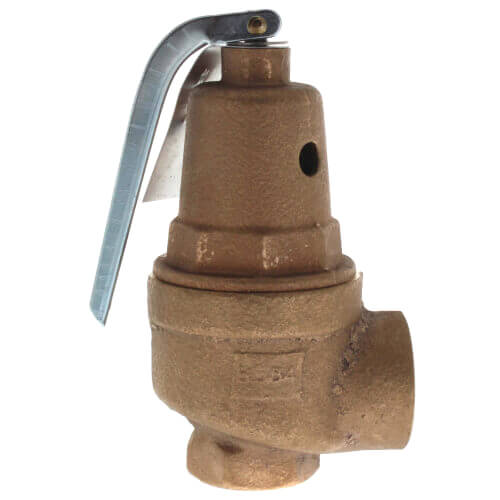

Apollo Valves 10-606-15 1-1/4 Inch RVW61 Bronze Relief Valve, 75 PSI

Product Description

The Apollo Valves model 10-606-15 is a high-capacity bronze safety relief valve designed for hot water heating boilers and systems. This valve ensures reliable overpressure protection by maintaining preset pressures between 15 to 160 psi at a maximum temperature of 250 degrees Fahrenheit.

• ASME Section IV certified capacity
• Corrosion-resistant construction and diaphragm isolated spring chamber
• USA-made with options compliant with Directive 97/23/EC (PED)

Product Highlights

Constructed from durable bronze, this valve features a brass ASTM B16 disc, and a silicone seat material, ensuring long service life and consistent performance. Suitable for applications requiring a high BTU capacity of up to 4,720,000 BTUH.

Product Information

Standard Information

• Inlet Type: FNPT
• Outlet Type: FNPT

Technical Specifications

• Pressure Set Point: 75 psi
• Max Temperature: 250 degrees Fahrenheit
• Body Material: Bronze
• Disc Material: Brass ASTM B16
• Seat Material: Silicone
• Spring Material: Plated Alloy Steel
• Overall Height: 8-3/8 inches
• Overall Length: 5-1/16 inches
