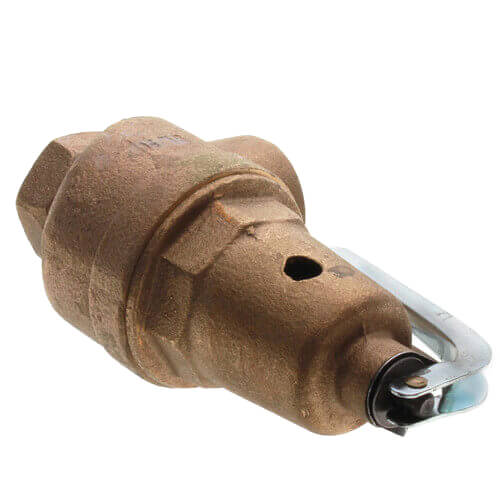

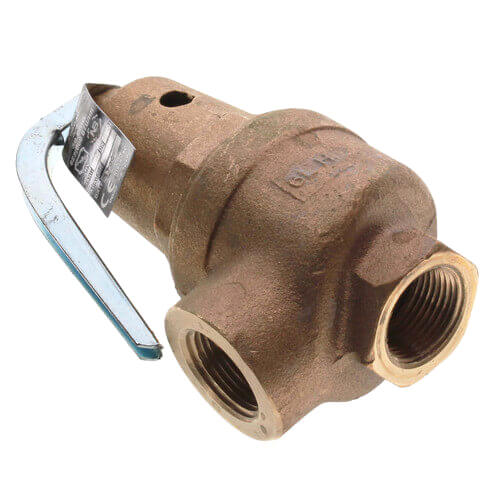

Apollo Valves 10-605-34 1 Inch FNPT RVW60 5044000 BTU Bronze Hot Water Relief Valve 150 psi

Product Description

The Apollo Valves model 10-605-34 is a 1 inch FNPT RVW60 bronze hot water relief valve designed to manage up to 5,044,000 BTU at 150 psi. Ideal for high-capacity heating systems, this valve features a robust bronze construction and is engineered to protect against excessive water pressure.

• Maximum temperature service of 250 degrees Fahrenheit.
• Features a silicone seat and fabric reinforced diaphragm.
• Entire pressure range is National Board capacity certified.

Product Highlights

This valve enhances system reliability by isolating the spring from water, ensuring optimal function and longevity. Its elevated seat promotes efficient drainage, minimizing wear and tear.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 10-605-34

Technical Specifications

• Material: Bronze
• Connection Type: FNPT x FNPT
• Capacity (BTU): 5,044,000 BTU
• Max Temp: 250°F
• Pressure Set Point: 150 psi
• Weight: 2.62 lbs
• Dimensions: Shipping Depth - 3.5 inches, Width - 2.25 inches, Height - 1.63 inches
