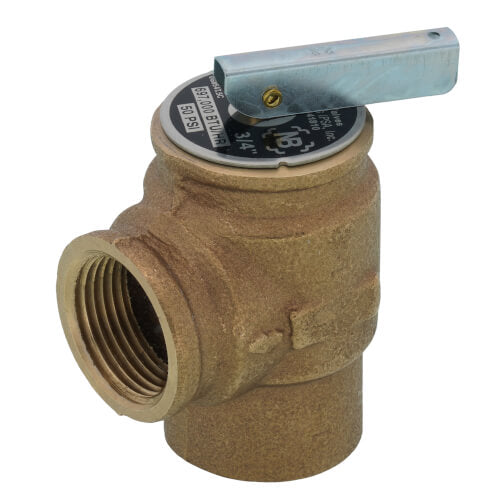

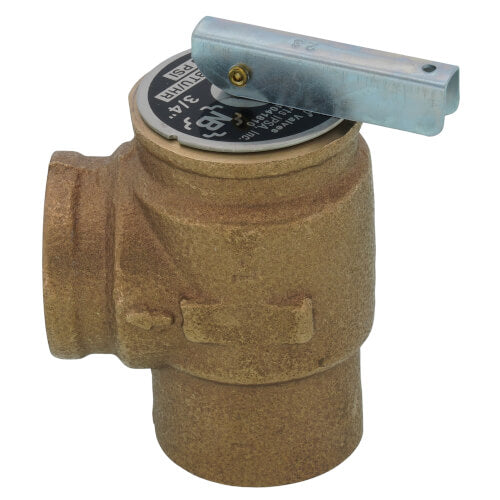

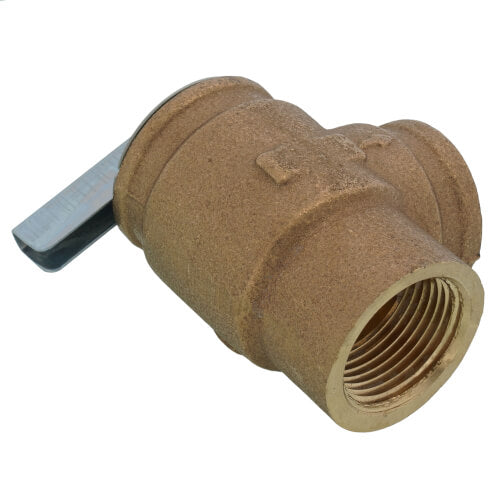

Conbraco Industries 1041810 3/4 50# 697,000 BTU Relief Valve

Product Description

The Conbraco Industries 1041810 is a three-quarter inch relief valve designed for high-capacity applications. With a rating of six hundred ninety-seven thousand BTU, this relief valve is suitable for safeguarding hot water boilers and heating systems against excessive pressure. This valve complies with ASME Section IV standards, ensuring reliable performance and safety.

• Rated for up to fifty psi pressure
• Constructed from durable bronze material
• Designed for maximum temperature service of up to two hundred fifty degrees Fahrenheit

Product Highlights

This relief valve is ideal for protecting against steam and excessive water pressure, providing safety in heating systems.

Product Information

Standard Information

• Manufacturer: Conbraco Industries
• Model: 1041810
• Type: Relief Valve
• Size: 3/4 inch FNPT

Technical Specifications

• BTU Capacity: 697,000 BTU
• Pressure Set Point: 50 psi
• Max Temperature: 250°F
• Connection Type: FNPT x FNPT
• Weight: 0.7 lbs
• Dimensions: Length 2.35 inches, Width 3.75 inches, Height 1.7 inches
