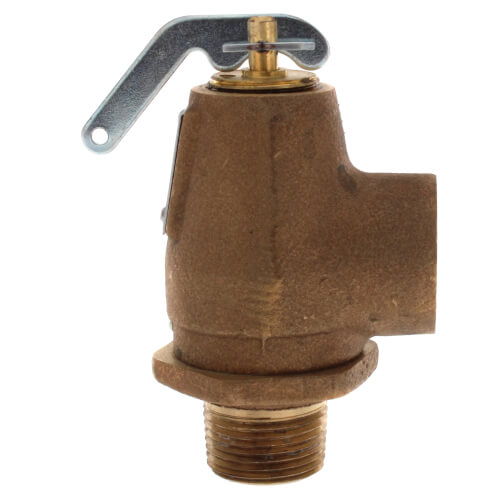

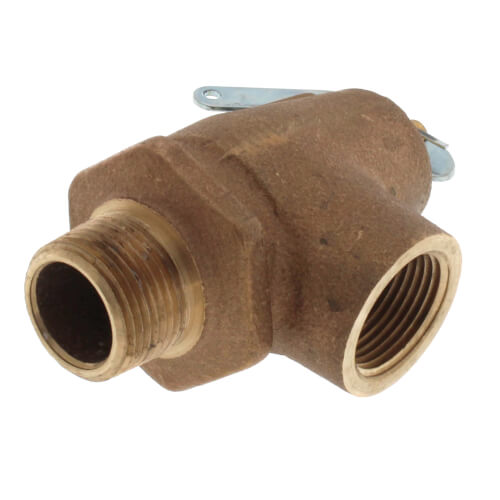

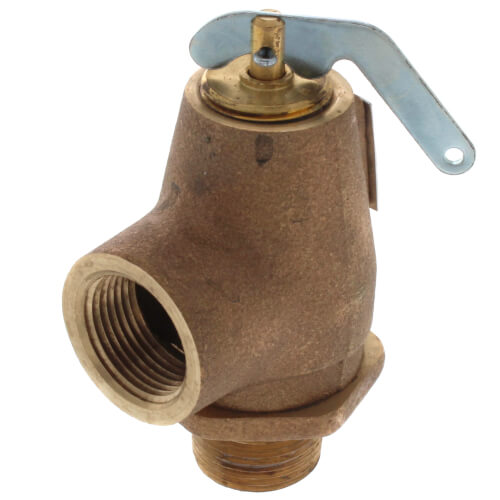

Apollo Valves 10-301-05 RVW30 Relief Valve 550000 BTU 30 PSIG

Product Description

The Apollo Valves model 10-301-05 is engineered to ensure the safety and efficiency of hot water systems by relieving excess pressure. This pressure relief valve is a crucial component for both residential and commercial heating applications, safeguarding against the dangers of excessive pressure.

• Capacity-certified to handle up to 550,000 BTU with thermal expansion control.
• Compatible with pressures ranging from 20 to 150 PSIG and temperatures up to 250 degrees Fahrenheit.
• Constructed from durable brass, ensuring long-term reliability and performance.

Product Highlights

This valve meets stringent ASME Section IV requirements, making it an ideal choice for high-capacity heating systems.

Product Information

Standard Information

• Manufacturing Material: Bronze
• Inlet/Outlet Type: Male NPT to Female NPT

Technical Specifications

• Connection Type: MPT x FPT
• Pressure Rating: 30 psi
• Maximum Working Temperature: 250 degrees Fahrenheit
