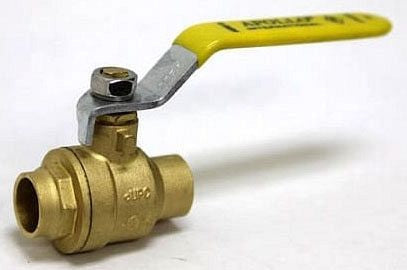

Conbraco 94A-205-01 1 Brz Fp Sweat Ball Valve 1 IN

Product Description

The CONBRACO 94A-205-01 is a 2-Piece Full-Port In-Line Standard Ball Valve. It has a solder connection and a nominal size of 1 IN. The valve is designed with a forged brass body and a lever handle operator. It has a pressure rating of 600 PSI (CWP) and a temperature rating of 0 - 400 DEG F.

• 2-Piece Full-Port In-Line Standard Ball Valve
• Series 94A
• Solder Connection

Product Highlights

This ball valve features a forged brass body, corrosion-resistant steel handle, and PTFE seats, suitable for various industrial applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 94A-205-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 94A
• Nominal Size: 1 IN
• Connection Type: Solder
• Pressure Rating: 600 PSI (CWP)
• Temperature Rating: 0 - 400 DEG F
• Opening: 0.945 IN
• Body Material: Forged Brass
• Operator Type: Lever Handle
• Handle Material: Corrosion Resistant Steel
• Stem Material: Chrome-Plated Brass
• Trim Material: Brass Ball
• Packing Material: PTFE Stem
• Seat Material: PTFE
• Finish/Color: Chrome Plated Ball And Stem
• Industry Standards: MSS-SP-110 Compliant, CSA Certified, UL Listed, FM Approved
• Width: 3.228 IN
• Lead Free: No
• Other Physical Dimension: 2.441 IN Inlet Center To Top Of Handle, 4.528 IN Handle Length
• Flow Co-Efficient (Cv): 50
• Item: Ball Valve
• Port: Full
• Ball Material: Chrome-Plated Brass
• Handle Type: Lever
• Stem Type: Blowout Proof
• Approvals: UL, CSA, NSF, FM, MSS SP-100 (See Spec Sheet)
• Brand Name: Conbraco
• UPC: 670750823732
• Pieces: 2
• Size: 1 in
• Type: Sweat
• Opening Size: 0.945 IN
• CWP: 600
