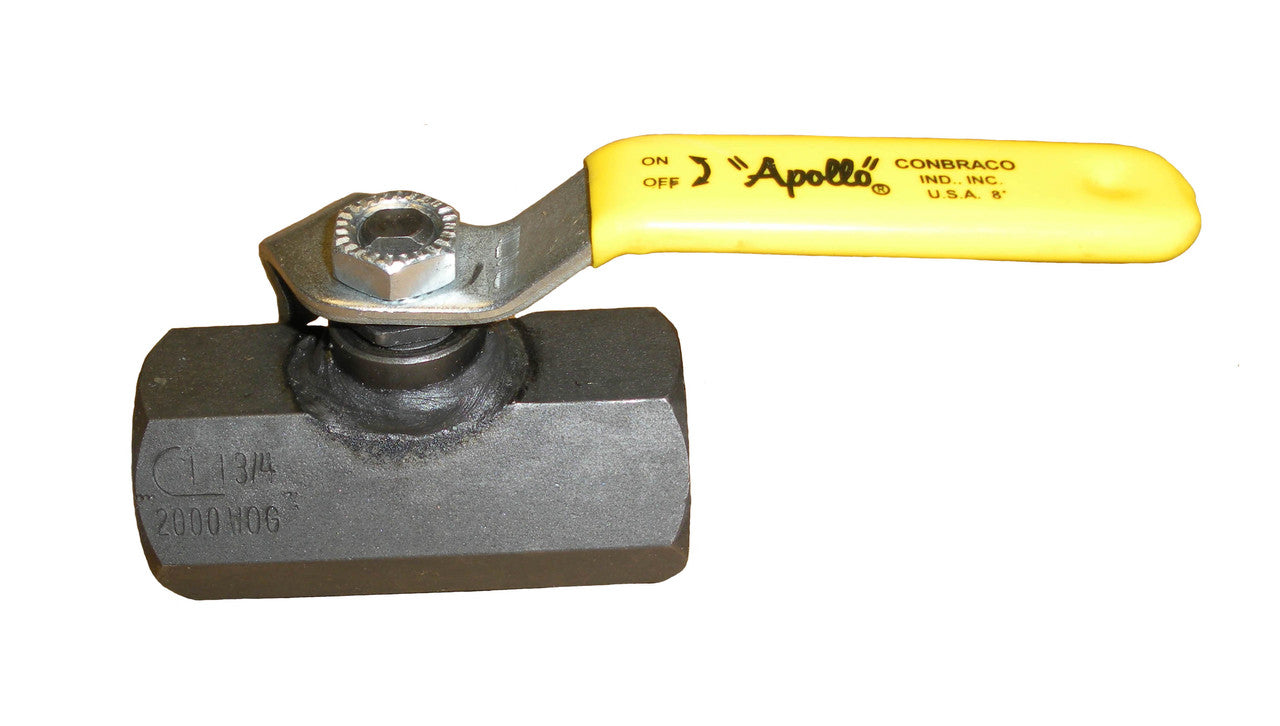

Conbraco 93-105-01 1 Cs Thrd Ball Valve 1 IN

Product Description

The CONBRACO 93-105-01 is a uni-body reduced port standard ball valve. This valve features a carbon steel body material and a lever handle operator type. It is MSS-SP-110 and API 607 compliant, with MPTFE stem packing and a RPTFE seat. The valve has a 1 IN nominal size and a 0.63 IN opening.

• Uni-Body Reduced Port Standard Ball Valve
• Carbon Steel Body Material
• Lever Handle Operator Type

Product Highlights

This ball valve is ideal for applications requiring a reliable shutoff with a compact design and robust material construction.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 93-105-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 93-100
• Nominal Size: 1 IN
• Connection Type: FNPT
• Pressure Rating: 2000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Opening: 0.63 IN
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Carbon Steel
• Trim Material: Carbon Steel Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Ball Material Standard: ASTM A108
• Handle And Stem Finish/Color: Zinc Plated
• Ball Finish: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, API 607
• Width: 3.03 IN
• Lead Free: No
• Other Physical Dimension: 1.93 IN Inlet Center To Top Of Handle, 4.68 IN Handle Length
• Flow Co-Efficient (Cv): 16
• Actuator Type: Lever
• Ball Material: Carbon Steel
• Configuration: Standard
• Domestic/Import: Domestic
• Inlet to Outlet Length: 3.03 in
• Material Standard: ASTM A108, ASTM A276
• Media: Gas, Water
• Orifice Size: 0.63 in
• Port Type: Reduced
• Series: 93-100
• Top to Inlet Center: 1.93 in
• Item: Ball Valve
• Size: 1"
• Max. Pressure: 2000 CWP
• Temperature Range: -50F to 600F
• Handle Type: Lever
• Stem: Blowout Proof
• End Style: Threaded
• Type: Ball Valve
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Opening Size: 0.63 IN
• Additional Specifications: Flow Co-Efficient (Cv): 16
• Port: Reduced
