Conbraco 93-103-01 1/2 CS Thrd Ball Valve

Product Description

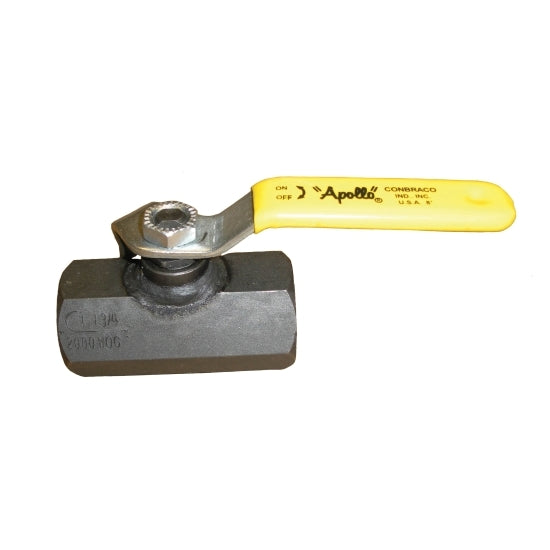

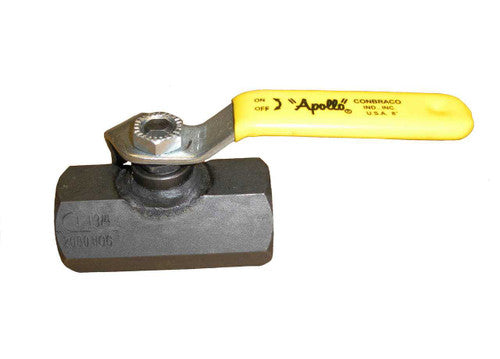

The CONBRACO 93-103-01 is a uni-body reduced port standard ball valve. This valve features a carbon steel body and a lever handle operator. Suitable for various applications, it has a pressure rating of 2000 PSI (CWP) and 150 PSI (SWP). The valve's nominal size is 1/2 IN with a 0.38 IN opening.

• Uni-Body Reduced Port
• Standard Ball Valve
• Lever Handle Operator

Product Highlights

This ball valve is constructed with a carbon steel body, suitable for up to 500 DEG F, and complies with MSS-SP-110 and API 607 standards.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 93-103-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 93-100
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 2000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Opening Size: 0.38 IN
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Carbon Steel
• Trim Material: RPTFE/Zinc Plated Carbon Steel
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Material Standard (Ball): ASTM A108
• Finish/Color: Zinc Plated Handle And Stem, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, API 607
• Width: 2.18 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1.68 IN
• Handle Length: 3.68 IN
• Flow Co-Efficient (Cv): 5.7
• Temperature Range: -50F to 600F
• Handle Type: Lever
• Stem: Blowout Proof
• Actuator Type: Lever Handle
• Ball Material: Chrome Plated Carbon Steel
• End Style: FNPT
• Inlet to Outlet Length: 2.18 in
• Port Type: Reduced
• Softgoods Material: MPTFE
• Top to Inlet Center: 1.63 in
• Type: Uni-Body
