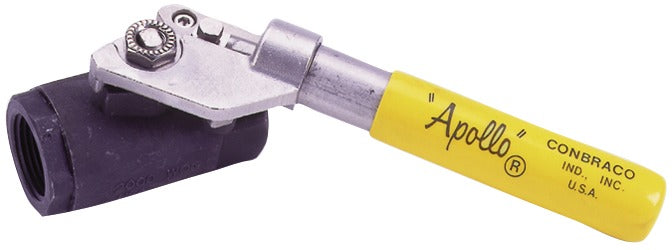

Conbraco 89-506-01 Ball Valve 1-1/4 in

Product Description

The CONBRACO 89-506-01 is a 2-piece ball valve with a 1-1/4 inch nominal size and FNPT connection. Constructed with a carbon steel body, this valve is designed for durability. It features a lever handle operator and a stainless steel handle. Compliant with MSS-SP-110 standards.

• Features a stainless steel lever
• Provides zinc phosphate corrosion protection
• Has a blowout-proof stem design

Product Highlights

This ball valve is suitable for gas and water media, offering reliable performance with its spring return actuator and adjustable packing gland.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 89-506-01
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 89-500
• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 1500 PSI (WOG), 150 PSI (SWP)
• Temperature Rating: -20 To 500 DEG F
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: Carbon Steel Ball
• Packing Material: MPTF Stem
• Seat Material: Multifill PTFE
• Seal Material: PTFE
• Body Material Standard: ASTM A216 Grade WCB
• Stem Material Standard: ASTM A276
• Ball Material Standard: ASTM A108
• Ball Finish/Color: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant
• Width: 4 IN
• Lead Free: No
• Handle Length: 9 IN
• Ball Material: 316 Stainless Steel
• Configuration: Standard
• Domestic/Import: Domestic
• Inlet to Outlet Length: 4 in
• Media: Gas, Water
• Orifice Size: 1 in
• Port Type: Standard
• Top to Inlet Center: 2 in
• Size: 1-1/4 in
• End Style: Threaded
• Type: Ball Valve
• Series: 89-500
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Softgoods Material: MPTFE/PTFE
