Conbraco 89-143-01A 1/2 Cast Cs Thrd Std Ball Valve

Product Description

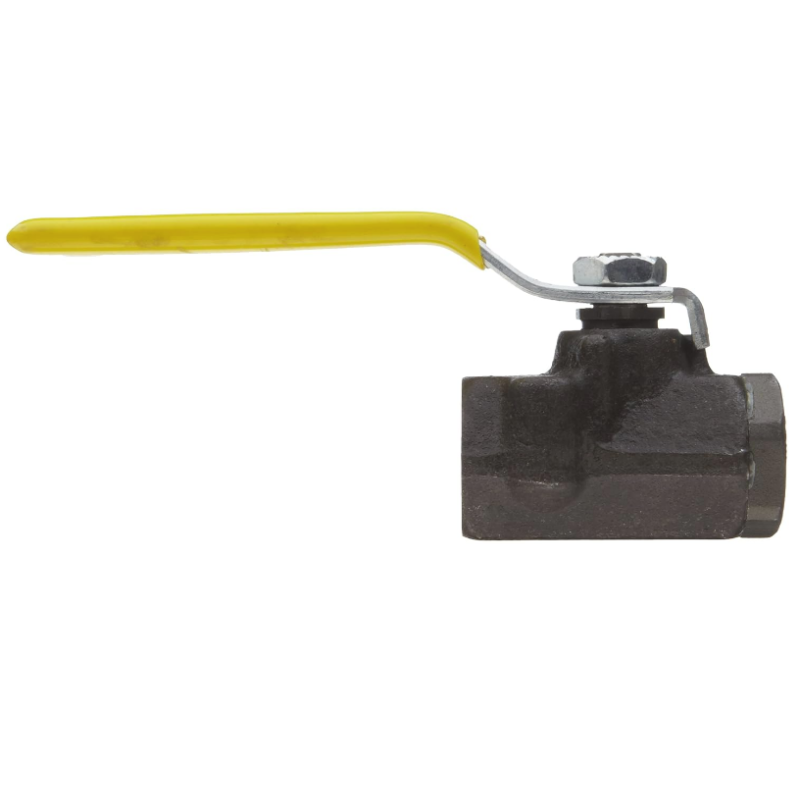

The CONBRACO 89-143-01A is a 2-piece standard ball valve from the Series 89-140. This valve features a 1/2 IN nominal size and FNPT connection type. Constructed with a carbon steel body and a 316 stainless steel ball and stem, it is designed for durability. It has a pressure rating of 2000 PSI (CWP) and 150 PSI (SWP).

• Features a lever handle operator and steel handle with vinyl grip.
• Temperature rating up to 500 DEG F.
• Compliant with MSS-SP-110 and fire tested to API 607, 6th Edition, CSA/CAN 3.16-M88 (2009).

Product Highlights

This ball valve is suitable for various applications requiring reliable flow control with robust material construction and industry standard compliance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 89-143-01A
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 89-140
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 2000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Opening: 1/2 IN
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel/PTFE
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Standard: ASTM A216 Grade WCB
• Stem Material Standard: ASTM A108
• Handle Finish/Color: Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, CSA/CAN 3.16-M88 (2009)
• Width: 2.23 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1.79 IN
• Handle Length: 3.85 IN
• Flow Co-Efficient (Cv): 15
• Ball Material: 316 Stainless Steel
• Domestic/Import: Domestic
• End Style: FNPT
• Media: Water
• Port Type: Standard
• Softgoods Material: MPTFE/PTFE
• Type: 2-Piece
• MPN: 89-143-01A
• Condition: New
