Conbraco 82-107-01 Ball Valve 1-1/2 Inch NPT

Product Description

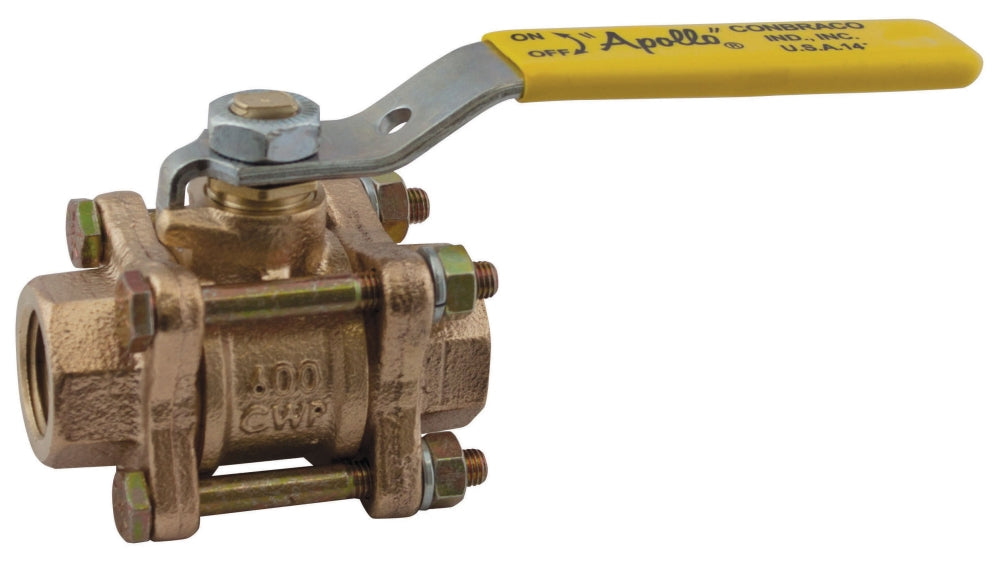

The CONBRACO 82-107-01 is a 3-piece ball valve with a dezincification resistant bronze body. It features threaded x threaded end connections and a full port design. Designed for commercial applications, this valve has a pressure rating of 600 PSI CWP and 150 PSI SWP, with a temperature rating up to 500 Deg F.

• Dezincification Resistant Bronze Body
• Full Port Ball Configuration in All Sizes
• 100 Percent Factory Tested

Product Highlights

This ball valve features a blowout-proof stem and an adjustable packing gland, suitable for commercial use.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 82-107-01

Technical Specifications

• Type: 3-Piece
• Actuation Type: Lever Handle
• Nominal Size: 1-1/2 Inch
• End Connection: Threaded x Threaded
• End To End Distance: 5.25 Inch
• Ball Material: Brass
• Body Material: ASTM B584 C84400 Dezincification Resistant Bronze
• Stem Material: RPTFE
• Seat Material: RPTFE
• Seal Material: MPTFE
• Handle Material: Zinc Plated Steel Lever, Vinyl Grip
• Port Type: Full
• Temperature Rating: 500 Deg F
• Pressure Rating: 150 psig, 600 psig
• Inclusions/Features: Blowoutproof Stem, Adjustable Packing Gland
• Application: Commercial
• Applicable Standard: CSA B51, MSS SP-110, CRN OC10908.5C
• Vacuum Service: 29 Inch HG
• Series/Model: Series 82-100
• Opening: 1-1/2 IN
• Trim Material: Brass Ball
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Width: 5-1/4 IN
• Depth: 3.03 IN
• Inlet Center To Top Of Handle: 3.37 IN
• Handle Length: 8 IN
• Flow Co-Efficient (Cv): 170 Cv
• Standards: MSS SP-110
• Body Style: 3 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Mounting Type: Inline Threaded
• Porting Style: Full Port
• Flow Direction: 2-Way
• O-Ring Material: RPTFE
• Connection Gender: Threaded
• Body Seal Material: RPTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Domestic / Import: Domestic
• End Style: FNPT
• Softgoods Material: RPTFE
• Actuator Type: Standard Lever
• Inlet to Outlet Length: 5-1/4 in
• Manufacturer: Apollo Conbraco
• Manufacturer #: 82-107-01
• Connection Type: FNPT
• Orifice Size: 1-1/2 in
• Packing Material: MPTFE
• Lead Free: No
• Overall Width: 3.03 in
• Overall Length: 5.25 in
