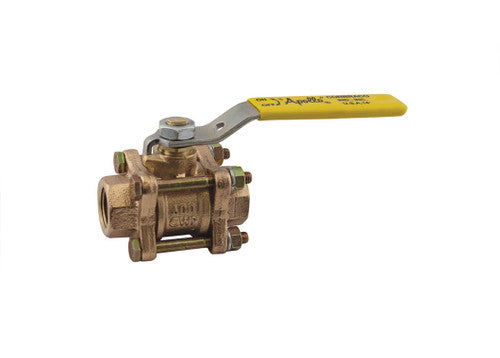

Conbraco 82-105-01 Ball Valve 1 Inch NPT x NPT 600 PSI CWP

Product Description

The CONBRACO 82-105-01 is a 1-inch NPT x NPT ball valve with a 600 PSI CWP rating. This 3-piece valve features a dezincification resistant bronze body and a full port design. It is suitable for commercial applications and includes a blowout-proof stem and adjustable packing gland.

• Dezincification Resistant Bronze Body
• Full Port Ball Configuration in All Sizes
• 100 Percent Factory Tested

Product Highlights

This ball valve is made in the USA and is ideal for applications requiring a reliable shutoff with minimal pressure drop.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 82-105-01
• Country of Origin: United States

Technical Specifications

• Actuation Type: Lever Handle
• Applicable Standard: CSA B51, MSS SP-110, CRN OC10908.5C
• Application: Commercial
• Ball Material: ASTM B16/B283 Chrome Plated Brass
• Body Material: ASTM B584 C84400 Dezincification Resistant Bronze
• End Connection: Threaded x Threaded
• End To End Distance: 3.87 Inch
• Handle Material: Zinc Plated Steel Lever, Vinyl Grip
• Inclusions/Features: Blowoutproof Stem, Adjustable Packing Gland
• Nominal Size: 1 Inch
• Port Type: Full
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Seal Material: MPTFE
• Seat Material: RPTFE
• Stem Material: ASTM B16 Chrome Plated Brass
• Temperature Rating: 500 Deg F
• Type: 3-Piece
• Series/Model: Series 82-100
• Material Standard Body: ASTM B584
• Material Standard Ball And Stem: ASTM B16
• Material Specification Body: UNS C84400
• Lead Free: No
• Depth: 2.22 IN
• Inlet Center To Top Of Handle: 2.62 IN
• Handle Length: 5-1/2 IN
• Flow Co-Efficient (Cv): 68
• Body Style: 3 Piece
• Mounting Type: Inline Threaded
• Overall Length: 3.87 in
• Overall Width: 2.22 in
• Orifice Size: 1 in
• Media: Gas, Water
• Packing Material: MPTFE
