Conbraco 82-103-01 Ball Valve 1/2 inches NPT x NPT 600 PSI CWP

Product Description

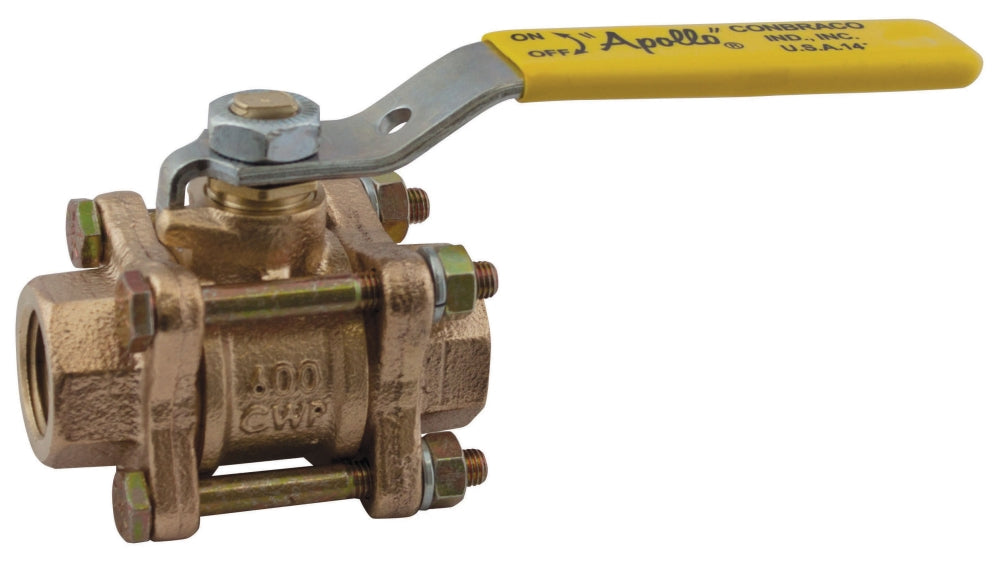

The CONBRACO 82-103-01 is a 3-Piece ball valve with a 1/2 inch nominal size and threaded connections. Constructed with ASTM B584 C84400 dezincification resistant bronze body and a chrome plated brass ball, this valve is designed for commercial applications. It features a lever handle for actuation and is pressure rated to 600 PSI CWP and 150 PSI SWP.

• Dezincification Resistant Bronze Body
• Full Port Ball Configuration in All Sizes
• 100 Percent Factory Tested

Product Highlights

This CONBRACO ball valve offers a full port design, a blowoutproof stem, and an adjustable packing gland for reliable performance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 82-103-01

Technical Specifications

• Actuation Type: Lever Handle
• Applicable Standard: CSA B51, MSS SP-110, CRN OC10908.5C
• Application: Commercial
• Ball Material: ASTM B16/B283 Chrome Plated Brass
• Body Material: ASTM B584 C84400 Dezincification Resistant Bronze
• End Connection: Threaded x Threaded
• End To End Distance: 2.81 Inch
• Handle Material: Zinc Plated Steel Lever, Vinyl Grip
• Inclusions/Features: Blowoutproof Stem, Adjustable Packing Gland
• Nominal Size: 1/2 Inch
• Port Type: Full
• Pressure Rating: 600 PSI CWP, 150 PSI SWP
• Seal Material: MPTFE
• Seat Material: RPTFE
• Stem Material: ASTM B16 Chrome Plated Brass
• Temperature Rating: 500 Deg F
• Type: 3-Piece
• Series/Model: Series 82-100
• Opening: 0.62 IN
• Material Standard: Body: ASTM B584, Ball And Stem: ASTM B16
• Material Specification: Body: UNS C84400
• Width: 2.81 IN
• Depth: 1.78 IN
• Inlet Center To Top Of Handle: 1.93 IN
• Handle Length: 4.87 IN
• Flow Co-Efficient (Cv): 26
• Mounting Type: Inline Threaded
• Overall Width: 1.78 in
• Overall Length: 2.81 in
• Connection Gender: Threaded
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Domestic / Import: Domestic
