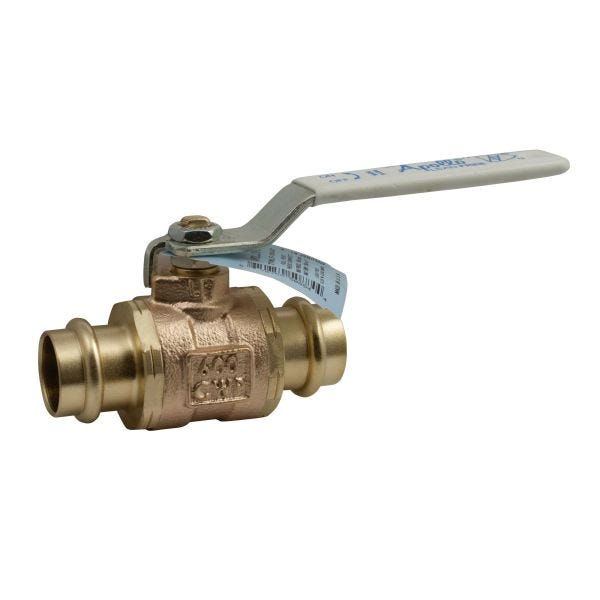

Conbraco 77WLF-105-01 1 Lead Free Press End Fp Ball Valve 1 in

Brand: CONBRACO
SKU: 77WLF-105-01
Availability: In Stock

Ships same day if ordered by 12 pm
$126.64
$126.64
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CONBRACO 77WLF-105-01 is a 2-Piece Full-Port In-Line Standard Ball Valve with a 1 IN nominal size and press connection. Constructed with a cast bronze body and brass stem, this valve is suitable for potable water systems. It has a pressure rating of 250 PSI (WOG), 15 PSI (SWP) and a temperature rating of 0 - 250 DEG F.

  • Lead Free
  • ARRA Compliant
  • MSS-SP-110 Compliant

Product Highlights

This lead-free ball valve is designed for efficient fluid control in plumbing and HVAC applications, ensuring safety and compliance with health standards.

Product Information

Standard Information

  • Brand: CONBRACO
  • Manufacturer Part Number: 77WLF-105-01
  • Country of Origin: USA
Technical Specifications
Series/Model
Series 77WLF
Nominal Size
1 IN
Connection Type
Press
Pressure Rating
250 PSI (WOG), 15 PSI (SWP)
Temperature Rating
0 - 250 DEG F
Opening Size
1 IN
Body Material
Cast Bronze
Operator Type
Lever Handle
Handle Material
Steel/Insulated Polyvinyl
Stem Material
Brass
Trim Material
Brass Ball
Packing Material
Multifill PTFE Stem, Brass Gland
Seat Material
Multifill PTFE
Seal Material
MPTFE
Material Standard
Body: ASTM B584, Ball And Stem: ASTM B16, Gland: ASTM B16
Material Specification
Body: UNS C89836, Ball And Stem: UNS C27451, Gland: UNS C36000
Width
4.24 IN
Lead Free
Yes
Other Physical Dimension
2.2 IN Inlet Center To Top Of Handle, 4.78 IN Handle Length
Actuator Type
Lever Handle
Ball Material
Chrome Plated Brass
Domestic/Import
Domestic
Inlet to Outlet Length
3.86 in
Item Type
Ball Valve-Press
Material
Brass/Bronze
Media
Water
Port Type
Full
Softgoods Material
Multi-Fill PTFE/EPDM
Top to Inlet Center
2.2 in
Type
2-Piece
Gland Material
Brass
End Style
Press
Brand
Apollo/Conbraco
Industry Standards
MSS-SP-110 Compliant, Directive 2002/95/CE (RoHS) Compliant, NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, ARRA Compliant
