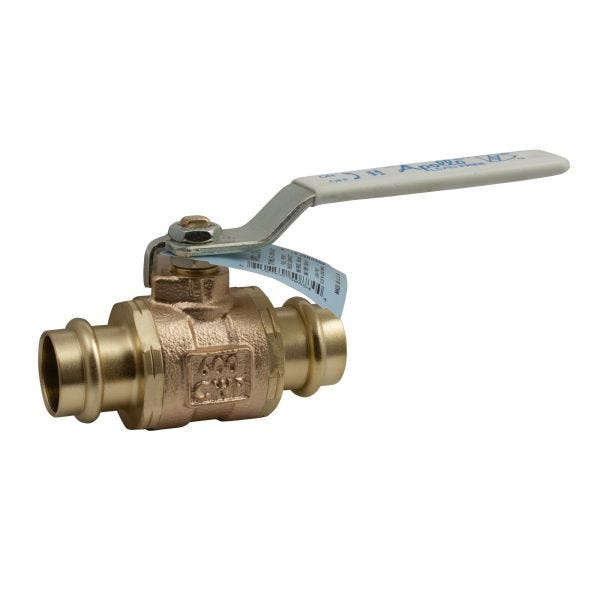

Conbraco 77WLF-104-01 3/4 Lead Free Press End Fp Ball Valve

Brand: CONBRACO
SKU: 77WLF-104-01
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$90.89
$90.89
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CONBRACO 77WLF-104-01 is a 2-piece full-port in-line standard ball valve. It features a cast bronze body and a steel/insulated polyvinyl lever handle. This valve is suitable for use with water and has a pressure rating of 250 PSI (WOG) and 15 PSI (SWP). It is compliant with MSS-SP-110, Directive 2002/95/CE (RoHS), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, and ARRA standards.

  • 2-Piece Full-Port In-Line Standard Ball Valve
  • Lead Free
  • 3/4 IN Opening

Product Highlights

This lead-free ball valve offers full-port flow and is designed for fast, reliable, and economical press installation.

Product Information

Standard Information

  • Brand: CONBRACO
  • Manufacturer Part Number: 77WLF-104-01
  • Country of Origin: USA

Technical Specifications

  • Series/Model: Series 77WLF
  • Nominal Size: 3/4 IN
  • Connection Type: Press
  • Pressure Rating: 250 PSI (WOG), 15 PSI (SWP)
  • Temperature Rating: 0 - 250 DEG F
  • Opening: 3/4 IN
  • Body Material: Cast Bronze
  • Operator Type: Lever Handle
  • Handle Material: Steel/Insulated Polyvinyl
  • Stem Material: Brass
  • Trim Material: Brass Stem/Multi-Fill Seat
  • Packing Material: Multifill PTFE Stem, Brass Gland
  • Seat Material: Multifill PTFE
  • Material Standard Body: ASTM B584
  • Material Standard Ball And Stem: ASTM B16
  • Material Standard Gland: ASTM B16
  • Body Material Specification: UNS C89836
  • Ball And Stem Material Specification: UNS C27451
  • Gland Material Specification: UNS C36000
  • Industry Standards: MSS-SP-110 Compliant, Directive 2002/95/CE (RoHS) Compliant, NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, ARRA Compliant
  • Width: 3.55 IN
  • Lead Free: Yes
  • Other Physical Dimension: 2.01 IN Inlet Center To Top Of Handle, 4.78 IN Handle Length
  • Port Type: Full
  • Media: Water
  • Domestic/Import: Domestic
  • Inlet to Outlet Length: 3.55 in
  • Top to Inlet Center: 2.01 in
  • Type: Ball Valve
  • Actuator Type: Lever Operated
  • Gland Material: Brass
  • Ball Material: Chrome Plated Brass
