Conbraco 77W-105-01 77W-105-01A Press End FP Ball Valve 1 in

Product Description

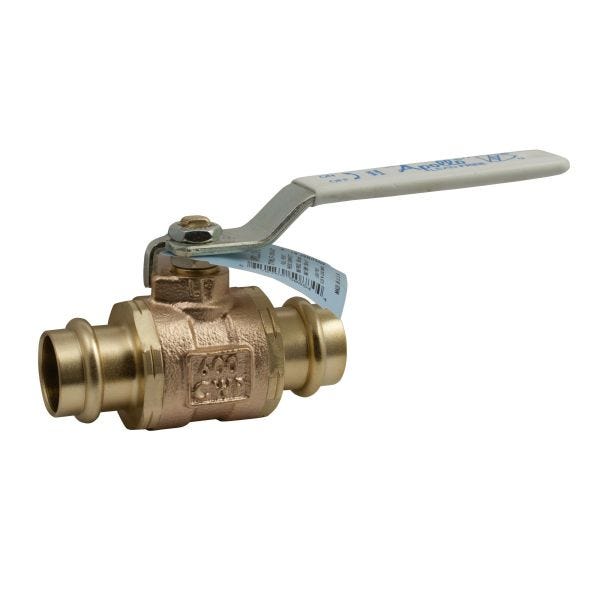

The CONBRACO 77W-105-01 77W-105-01A is a 2-Piece Full-Port In-Line Standard Ball Valve of Series 77W. It features a bronze body and a lever handle operator. This ball valve is suitable for use with water and has a pressure rating of 200 PSI (CWP).

• Features Leak before Press technology
• Constructed with corrosion resistant materials
• Compliant with MSS-SP-110 and ANSI/NSF 61-8 standards

Product Highlights

This full port ball valve has a bronze body, brass stem, and multi-fill seat trim. It is 100% factory tested and silicone free.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77W-105-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 77W
• Nominal Size: 1 IN
• Connection Type: Press
• Pressure Rating: 200 PSI (CWP)
• Temperature Rating: 0 - 250 DEG F
• Opening: 1 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel/Insulated Polyvinyl
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: Multifill PTFE Stem, Brass Gland
• Seat Material: Multifill PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball, Stem And Gland): ASTM B16
• Material Specification (Body): UNS C84400
• Material Specification (Stem And Gland): UNS C36000
• Finish/Color: Plated Handle
• Industry Standards: MSS-SP-110 Compliant, ANSI/NSF 61-8, Directive 2002/95/CE (RoHS) Compliant
• Width: 3.86 IN
• Lead Free: No
• Other Physical Dimension: 2.2 IN Inlet Center To Top Of Handle, 4.78 IN Handle Length
• Flow Co-Efficient (Cv): 68
• CWP: 300
• Port: Full Port
• Type: Ball Valve
• Softgoods Material: Multi-Fill PTFE/EPDM
• End Style: Press
• Media: Water
• Ball Material: Chrome Plated Brass
• Domestic/Import: Domestic
• Inlet to Outlet Length: 3.86 in
• Top to Inlet Center: 2.2 in
• Actuator Type: Lever Operated
• Size: 1"
