Conbraco 77W-104-01 3/4 77W-104-01A Press Ends Fp Ball Valve 3/4 in

Product Description

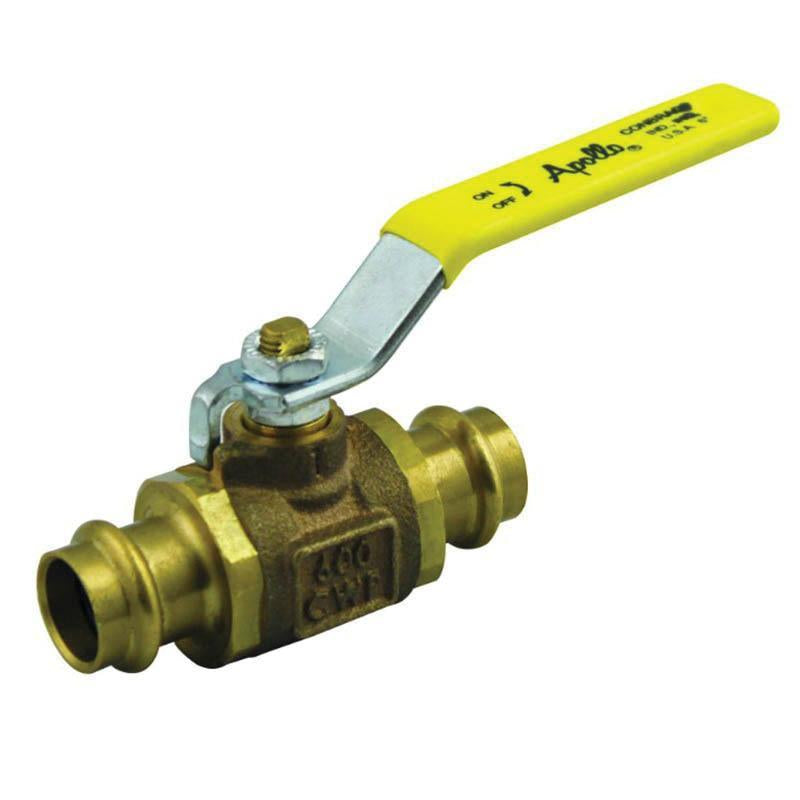

The CONBRACO 77W-104-01 3/4 77W-104-01A Press Ends Fp Ball Valve is a 2-Piece Full-Port In-Line Standard Ball Valve of Series 77W with a nominal size of 3/4 IN. It features a bronze body, lever handle operator, and press connection type. The valve is rated for a pressure of 200 PSI (CWP) and a temperature range of 0 - 250 DEG F.

• Features a bronze body and brass stem.
• Equipped with a lever handle for easy operation.
• Compliant with MSS-SP-110 and ANSI/NSF 61-8 standards.

Product Highlights

This ball valve is ideal for heating, cooling, and non-potable plumbing applications. It offers fast, reliable, and economical installation with Leak Before Press technology.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77W-104-01
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 77W
• Nominal Size: 3/4 IN
• Connection Type: Press
• Pressure Rating: 200 PSI (CWP)
• Temperature Rating: 0 to 250 deg F
• Opening: 3/4 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel/Insulated Polyvinyl
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: Multifill PTFE Stem, Brass Gland
• Seat Material: Multifill PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball, Stem And Gland): ASTM B16
• Material Specification (Body): UNS C84400
• Material Specification (Stem And Gland): UNS C36000
• Finish/Color: Plated Handle
• Industry Standards: MSS-SP-110 Compliant, ANSI/NSF 61-8, Directive 2002/95/CE (RoHS) Compliant
• Width: 3.55 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 36
• Port Type: Full
• Orifice Size: 3/4 in
• Ball Material: Chrome Plated Brass
• Actuator Type: Lever Handle
• Inlet to Outlet Length: 3.55 in
• Top to Inlet Center: 2.01 in
• Handle Length: 4.78 IN
