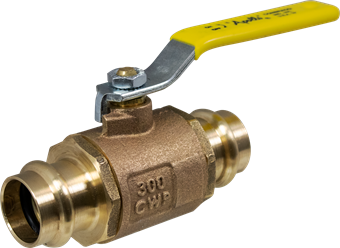

Conbraco 77W-103-01 1/2 Press Ends FP Ball Valve

Product Description

The CONBRACO 77W-103-01 is a 2-Piece Full-Port In-Line Standard Ball Valve. This Series 77W valve has a 1/2 IN nominal size and press connection type. It is designed for installation in heating, cooling and non-potable plumbing. The valve has a pressure rating of 200 PSI (CWP) and a temperature rating of 0 - 250 DEG F.

• Full-Port Flow
• Adjustable Stem Packing
• Corrosion Resistant Materials

Product Highlights

This bronze body ball valve features a steel/insulated polyvinyl lever handle, brass stem, and multifill PTFE seat material. It is MSS-SP-110 and ANSI/NSF 61-8 compliant.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77W-103-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 77W
• Nominal Size: 1/2 IN
• Connection Type: Press
• Pressure Rating: 200 PSI (CWP)
• Temperature Rating: 0 - 250 DEG F
• Opening: 1/2 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel/Insulated Polyvinyl
• Stem Material: Brass
• Trim Material: Brass Stem and Multi-Fill Seat
• Packing Material: Multifill PTFE Stem
• Seat Material: Multifill PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball, Stem And Gland): ASTM B16
• Body Material Specification: UNS C84400
• Stem And Gland Material Specification: UNS C36000
• Finish/Color: Plated Handle
• Industry Standards: MSS-SP-110 Compliant, ANSI/NSF 61-8, Directive 2002/95/CE (RoHS) Compliant
• Width: 3.08 IN
• Lead Free: No
• Other Physical Dimension: 1-1/2 IN Inlet Center To Top Of Handle, 3.74 IN Handle Length
• Flow Co-Efficient (Cv): 16
• Port: Full
• Handle Type: Lever
• Stem: Blowout Proof
• Housing Material: Bronze
• Connection 1: Press sleeve
• Contour code connection 1: V
• Connection 2: Press sleeve
• Contour code connection 2: V
• With filter: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Operation: Lever handle
• Housing construction: 2-part
• Item Name: In-Line Standard Ball Valve
• Type: 2-Piece, Full-Port
• Opening Size: 1/2 IN
• Gland Material: Brass
• Material Standard: Body: ASTM B584, Ball, Stem And Gland: ASTM B16
• Material Specification: Body: UNS C84400, Stem And Gland: UNS C36000
• Additional Specifications: Flow Co-Efficient (Cv): 16
• Actuator Type: Lever Handle
• Ball Material: Chrome Plated Brass
• Domestic/Import: Domestic
• End Style: Press
• Inlet to Outlet Length: 3.08 in
• Item Type: Ball Valve-Press
• Material: Brass/Bronze
• Media: Water
• Nominal/Diameter Size: 1/2 in
• Port Type: Full
• Pressure Rating CWP: 250 psig CWP
• Softgoods Material: Multi-Fill PTFE/EPDM
• Top to Inlet Center: 1-1/2 in
• Maximum operating pressure: 200 psi
• Design pressure: 600 psi
