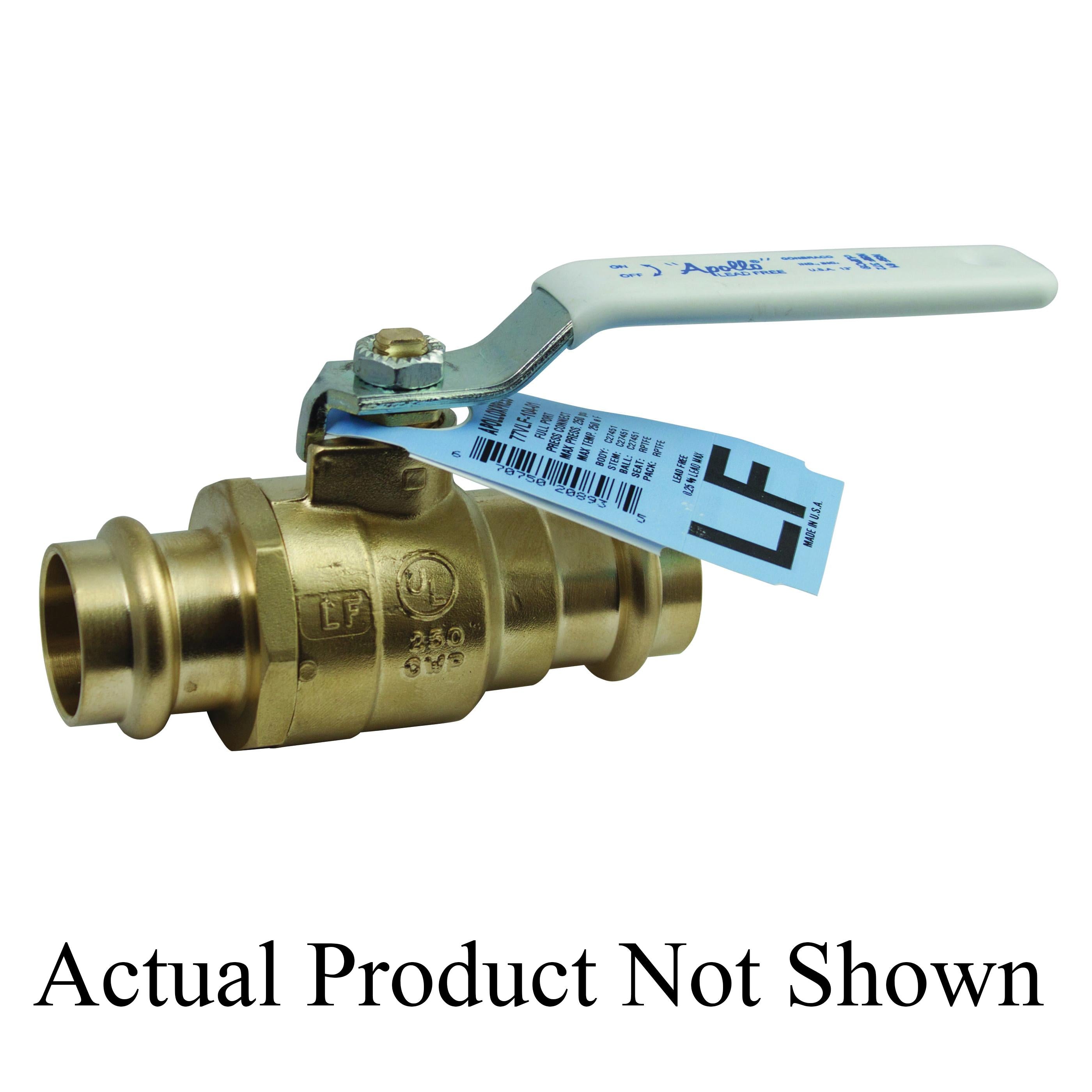

Conbraco 77VLF-107-01 Apollo® press ball valve 1-1/2 in nominal

Product Description

The CONBRACO 77VLF-107-01 Apollo® PRESS 77VLF Series lead-free two-piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. It features Leak Before Press® technology and a 300 psig maximum working pressure. Proudly made in the USA.

• Full port flow
• Superior RPTFE seats and packing
• Adjustable stem packing

Product Highlights

This Apollo® PRESS ball valve has corrosion-resistant materials, silicone-free assembly, and is 100% factory tested.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77VLF-107-01
• Country of Origin: Domestic

Technical Specifications

• Connection Type: Press
• Domestic/Import: Domestic
• Handle Material: Plated Steel/Insulated Polyvinyl
• Lead-Free/Contains Lead: Lead-Free
• Material: Brass
• Nominal Size: 1-1/2 in
• Packing Material: RPTFE
• Pressure Rating: 300 psi
• Seat Material: RPTFE
• Series: 77VLF Series
• Stem Material: Brass
• Temperature Rating: 0 to 250 deg F
• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 5.45 in
• Media: Chilled Water/Hot Water
• Port Type: Full
• Softgoods Material: RPTFE/EPDM
• Top to Inlet Center: 2.91 in
• Trim Material: Brass/RPTFE
• Type: 2-Piece
